Electronic Snap Button Machine Touch Screen Panel
  • Electronic Snap Button Machine Touch Screen PanelElectronic Snap Button Machine Touch Screen Panel

Electronic Snap Button Machine Touch Screen Panel

Electronic Snap Button Machine Touch Screen Panel ·Over whelmingly superior productivity with the world's fastest cycle time. ·High quality sewing faithfully following the sewing data. ·Realization of wide ranging sewing capabilities and low tension sewing ·Follow-up processing unnecessary after thread trimming. ·Prevents thread cast-off, bird's nests, and Stains on the thread at the beginning of the sewing operation. ·Clean sewing, powerful needle penetration force,adoption of compact flash cards.

Send Inquiry

Product Description

Electronic Snap Button Machine Touch Screen Panel

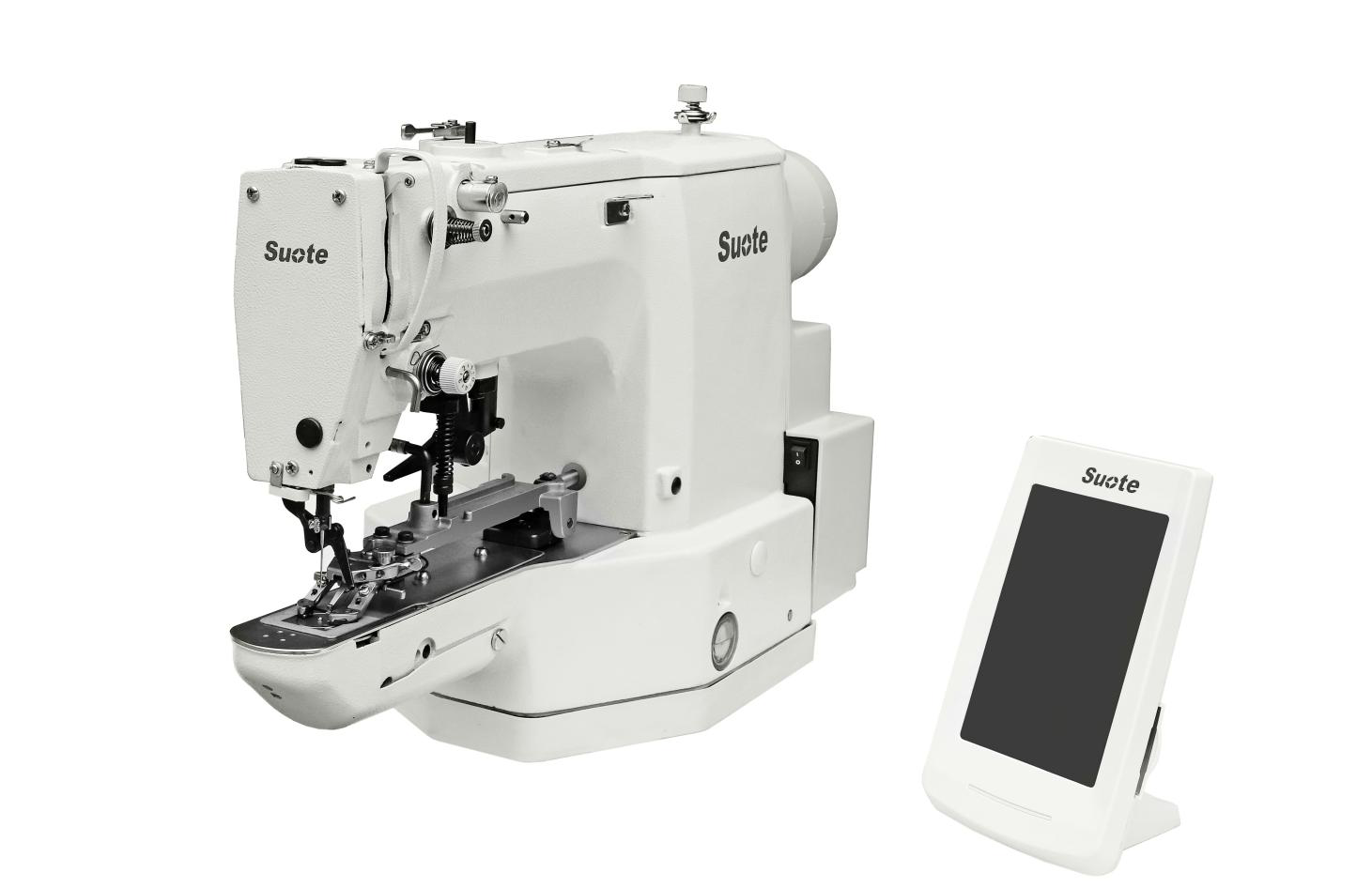

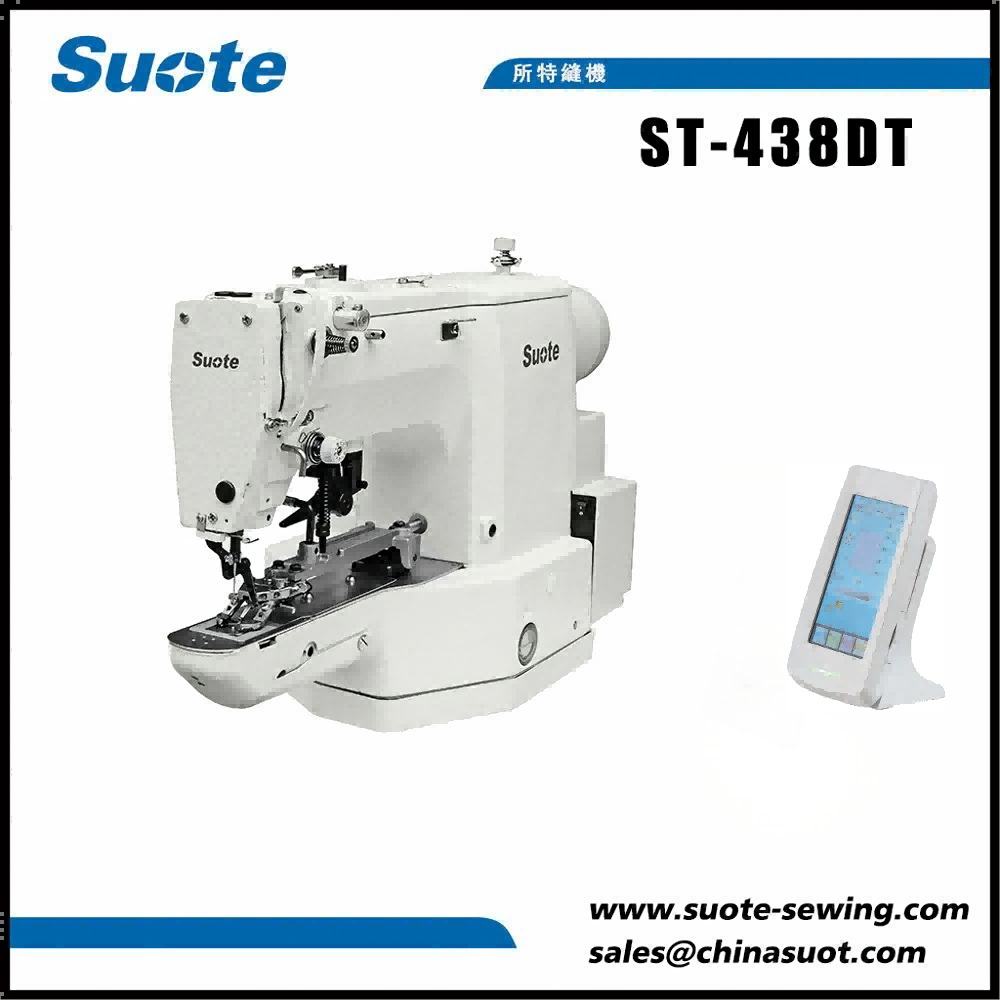

Electronic Snap Button Machine with touch screen panel



Introduction of Electronic Snap Button Machine, Touch Screen Panel

·Over whelmingly superior productivity with the world's fastest  cycle time.

·High quality sewing faithfully following the sewing data.

·Realization of wide ranging sewing capabilities and  low tension sewing

·Follow-up processing unnecessary after thread trimming.

·Prevents thread cast-off, bird's nests, and Stains on the thread at the beginning of the sewing operation.

·Clean sewing, powerful needle penetration force,adoption of compact flash cards.

·Low noise and low vibration, because of its low power consumption, it is economical.

·MAX sewing area: 6.4*6.4MM







Feartures of Electronic Snap Button Machine, Touch Screen Panel







Direct

drive

Lock

sttch

Button sewing



Typical Application of Electronic Snap Button Machine, Touch Screen Panel



Multi-use


Specifications of Electronic Snap Button Machine, Touch Screen Panel

ST-8438DT



ST-8438DT

Application

Button Sewing

Stitch formation

Single needle lockstitch

Max.Sewing speed

2700 rpm

Sewing area (X-Y)

Max. 6.4*6.4mm

Dimensions of buttons that can be sewn

Outer diameter of button 8-30mm*1

Feed mechanism

Y-θ intermittent feed mechanism (pulse-motor driven mechanism)

Stitch length

0.05-12.7mm

Max.No.of stitches

210,000 stitches(including 200,000 stitches which can be added)

Work clamp lifter

Pulse motor drive system

Work clamp height

13 mm Max.

Rotary hook

Shuttle hook

Thread wiper drive

Standard equipment

Thread trimmer drive

Standard equipment

Data storage method

Flash memory (any sewing pattern can be added using CF card)*2

Number of user program

50

Number of cycle program

9

Mumber of stored data

53 sewing patterns are set already

(Up to 200 patterns can be added.

Total number of stitches of stored data which can be added is within 200,000)

Motor

AC servo motor 550w



*1 use the optional button clamp B (S03634-101) for diameters of 20mm or greater

*2 the recommended CF cards are commercially-available ones from San Disk.

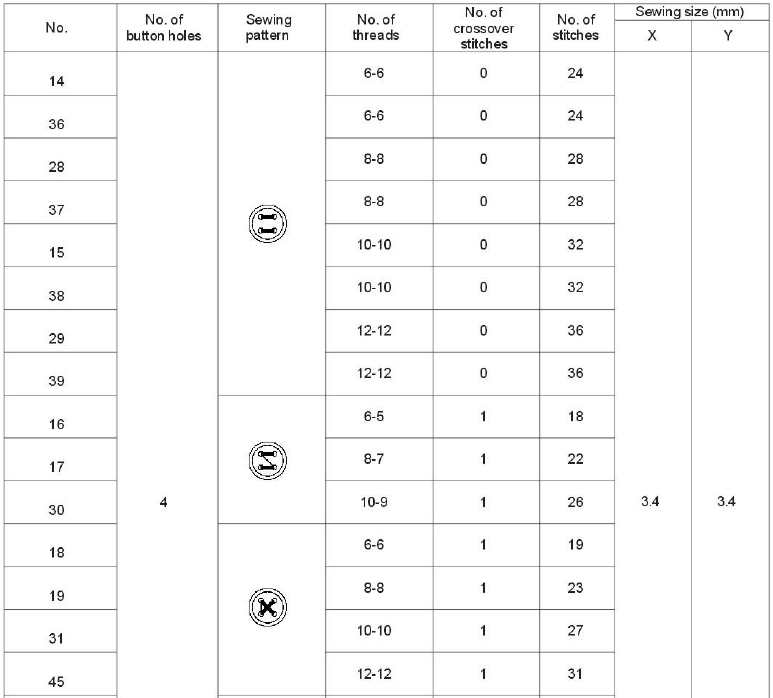

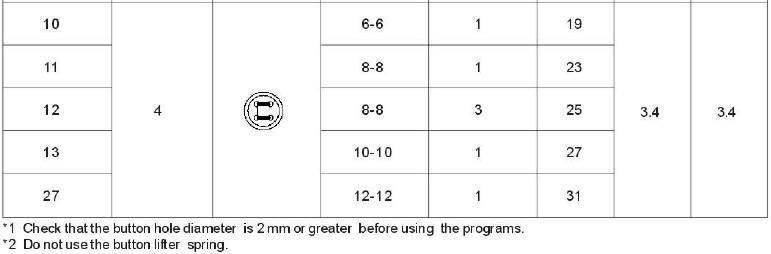

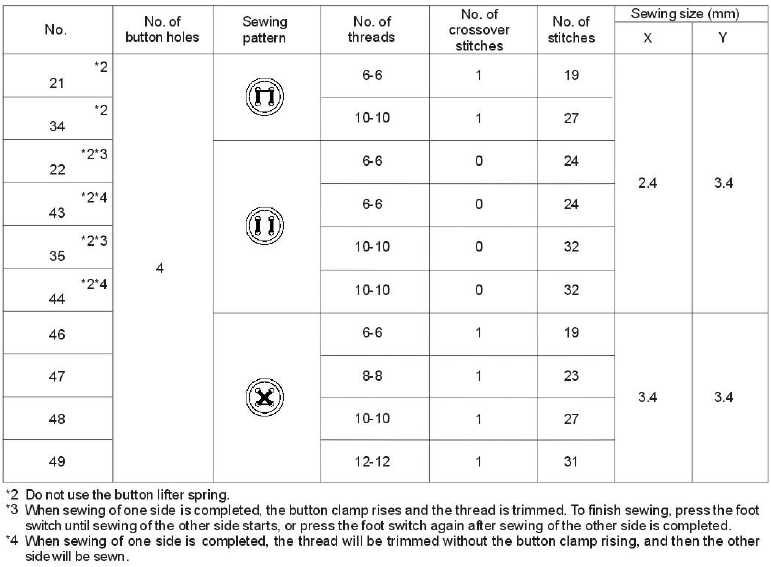

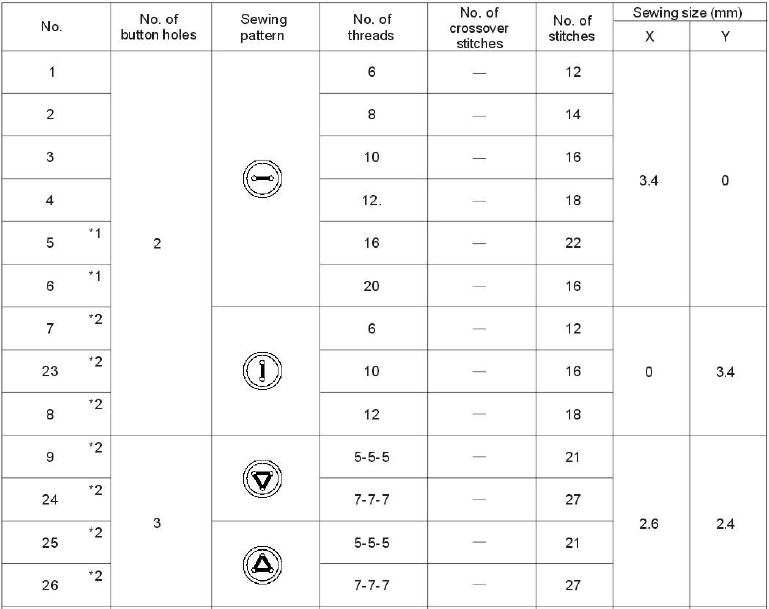

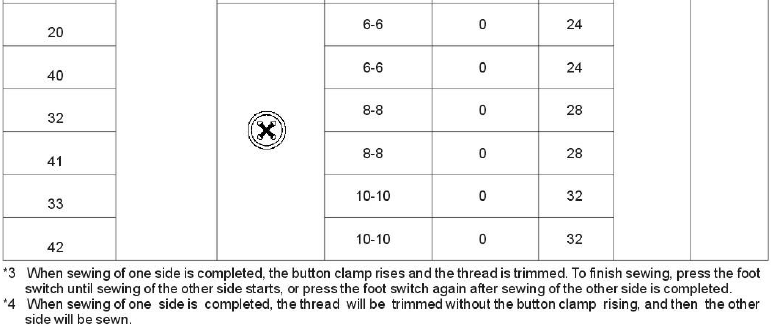

Sewing pattern list:














Delivery and Service:

· The machines have enough stock and can delivery within 7days.

· One year guarantee in mechanism parts except the quick-wear parts, three years guarantee in electronic parts.
