                      Electronic Button Stitch Sewing Machine

                      Electronic Button Stitch Sewing Machine

                      Electronic Button Stitch Sewing Machine Introduction ·Over whelmingly superior productivity with the fast cycle time. ·High quality sewing faithfully following the sewing data. ·Realization of wide ranging sewing capabilities and low tension sewing ·Follow-up processing unnecessary after thread trimming. ·Prevents thread cast-off, bird's nests, and Stains on the thread at the beginning of the sewing operation. ·Clean sewing, powerful needle penetration force,adoption of compact flash cards. ·Low noise and low vibration, because of its low power consumption, it is economical. ·MAX sewing area: 6.4*6.4MM

                      Model:ST-8438D

                      Send Inquiry    PDF DownLoad

                      Product Description

                      Electronic Button Stitch Sewing Machine ST-8438D








                      Introduction of this Electronic Button Stitch Sewing Machine

                      ·Over whelmingly superior productivity with the fast cycle time.

                      ·High quality sewing faithfully following the sewing data.

                      ·Realization of wide ranging sewing capabilities and  low tension sewing

                      ·Follow-up processing unnecessary after thread trimming.

                      ·Prevents thread cast-off, bird's nests, and Stains on the thread at the beginning of the sewing operation.

                      ·Clean sewing, powerful needle penetration force,adoption of compact flash cards.

                      ·Low noise and low vibration, because of its low power consumption, it is economical.

                      ·MAX sewing area: 6.4*6.4MM



                      Feartures of this Electronic Button Stitch Sewing Machine





                      Direct

                      drive

                      Lock

                      sttch

                      Button sewing


                      Typical Application of this Electronic Button Stitch Sewing Machine



                      Shirt

                      Blouse



                      Specifications of this Electronic Button Stitch Sewing Machine:ST-8438D



                      ST-8430D

                      ST-8438D

                      Application

                      01

                      02

                      05

                      06

                      07





                      Medium material

                      Heavy material

                      Belt

                      loop

                      Elastic stitch

                      Knitted materials

                      Button Sewing

                      Stitch formation

                      Single needle lockstitch

                      Max.Sewing speed

                      3200 rpm

                      2700 rpm

                      Sewing area (X-Y)

                      Max.

                      40*30mm

                      Max.

                      40*40mm

                      Max.

                      40*30mm

                      Max.

                      6.4*6.4mm

                      Dimensions of buttons that can be sewn

                      ---

                      Outer diameter of button 8-30mm*1

                      Feed mechanism

                      Y-θ intermittent feed mechanism (pulse-motor driven mechanism)

                      Stitch length

                      0.05-12.7mm

                      Max.No.of stitches

                      210,000 stitches(including 200,000 stitches which can be added)

                      Work clamp lifter

                      Pulse motor drive system

                      Work clamp height

                      17 mm Max.

                      13 mm Max.

                      Rotary hook

                      Shuttle hook

                      Thread wiper drive

                      Standard equipment

                      Thread trimmer drive

                      Standard equipment

                      Data storage method

                      Flash memory (any sewing pattern can be added using CF card)

                      Number of user program

                      50

                      Number of cycle program

                      50

                      Mumber of stored data

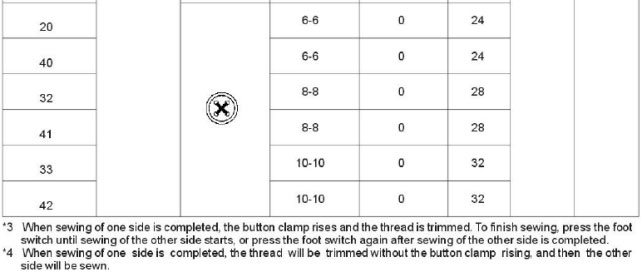

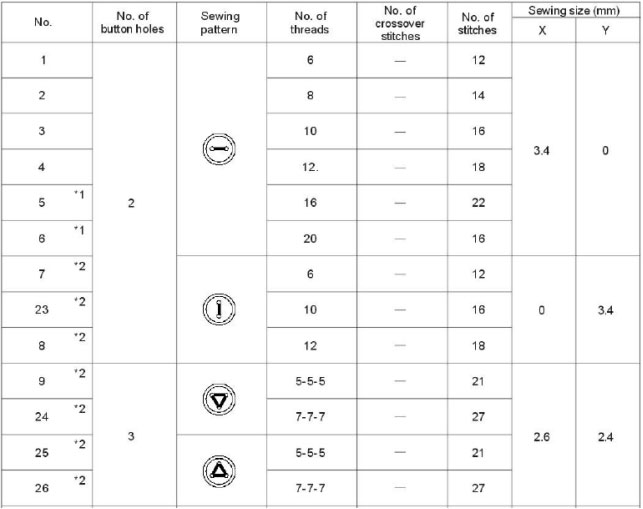

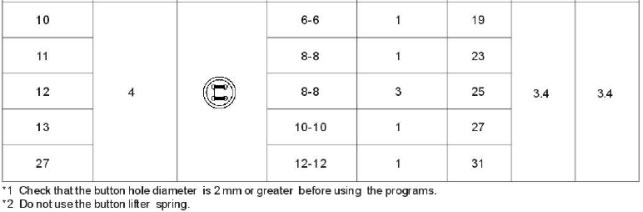

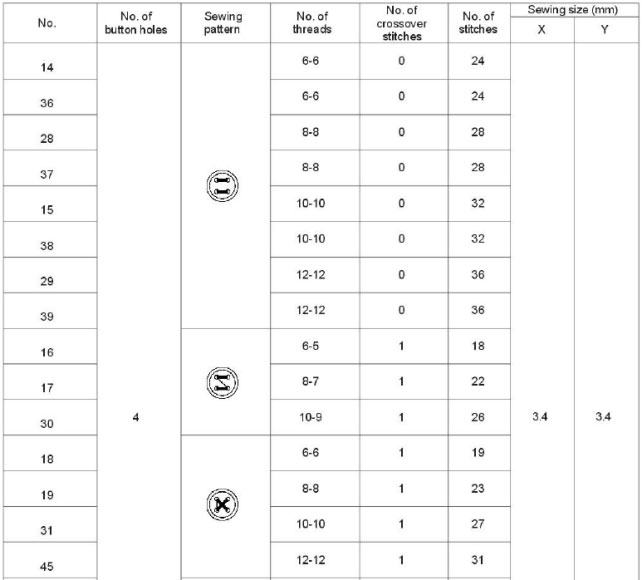

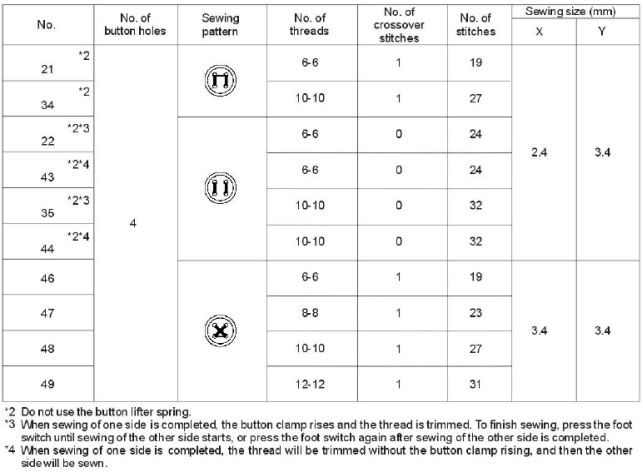

                      89 sewing patterns are set already

                      49 sewing patterns are set already

                      (Up to 200 patterns can be added Total number of stitches of stored data which can be added is within 200,000)

                      Motor

                      AC servo motor 550w


                      *1 use the optional button clamp B (S03634-101) for diameters of 20mm or greater

                      *2 the recommended CF cards are commercially-available ones from San Disk.


                      Delivery and Service of this Electronic Button Stitch Sewing Machine:

                      · The machines have enough stock and can delivery within 7days.

                      · One year guarntee in mechanism parts except the quick-wear parts, three years guarntee in electronic parts.
