                      Electronic Automatic Button Feeding Machine

                      Electronic Automatic Button Feeding Machine

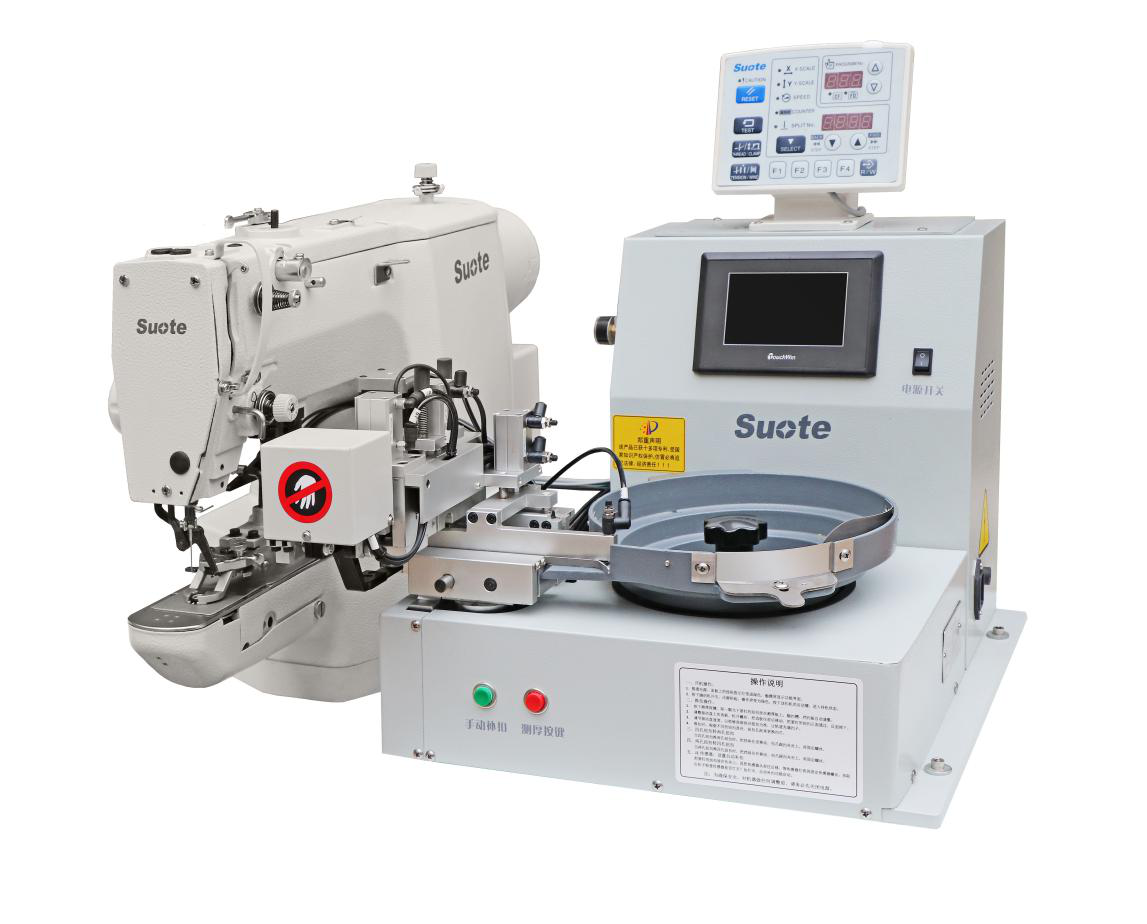

                      Electronic Automatic Button Feeding Machine · ST-8438D-868 automatic button feeding machine can perfect for using with ST-8438D button sewing machine · Sewing speed up to 28 buttons per minute · Automatic or manual button feeding · Touch screen operation · can use for 4-holes buttons, 3-holes buttons, 2-holes buttons and some special buttons.

                      Send Inquiry    PDF DownLoad

                      Product Description

                      Electronic Automatic Button Feeding Machine





                      Introduction of Electronic Automatic Button Feeding Machine

                      · ST-8438D-868 automatic button feeding machine can perfect for using with ST-438D button sewing machine

                      · Sewing speed up to 120 buttons per minute

                      · Automatic or manual button feeding

                      · Touch screen operation

                      · can use for 4-holes buttons, 3-holes buttons, 2-holes buttons and some special buttons.



                      Feartures of Electronic Automatic Button Feeding Machine







                      Direct

                      drive

                      Lock

                      sttch

                      Button sewing



                      Typical Application of Electronic Automatic Button Feeding Machine



                      Multi-use



                      Specifications of Electronic Automatic Button Feeding Machine

                      ST-8438D-868



                      ST-8438D-868

                      Application

                      Button Sewing

                      Stitch formation

                      Single needle lockstitch

                      Max.Sewing speed

                      2700 rpm

                      Sewing area (X-Y)

                      Max. 6.4*6.4mm

                      Dimensions of buttons that can be sewn

                      Outer diameter of button 8-30mm*1

                      Feed mechanism

                      Y-θ intermittent feed mechanism (pulse-motor driven mechanism)

                      Stitch length

                      0.05-12.7mm

                      Max.No.of stitches

                      210,000 stitches(including 200,000 stitches which can be added)

                      Work clamp lifter

                      Pulse motor drive system

                      Work clamp height

                      13 mm Max.

                      Rotary hook

                      Shuttle hook

                      Thread wiper drive

                      Standard equipment

                      Thread trimmer drive

                      Standard equipment

                      Data storage method

                      Flash memory (any sewing pattern can be added using CF card)*2

                      Number of user program

                      50

                      Number of cycle program

                      9

                      Mumber of stored data

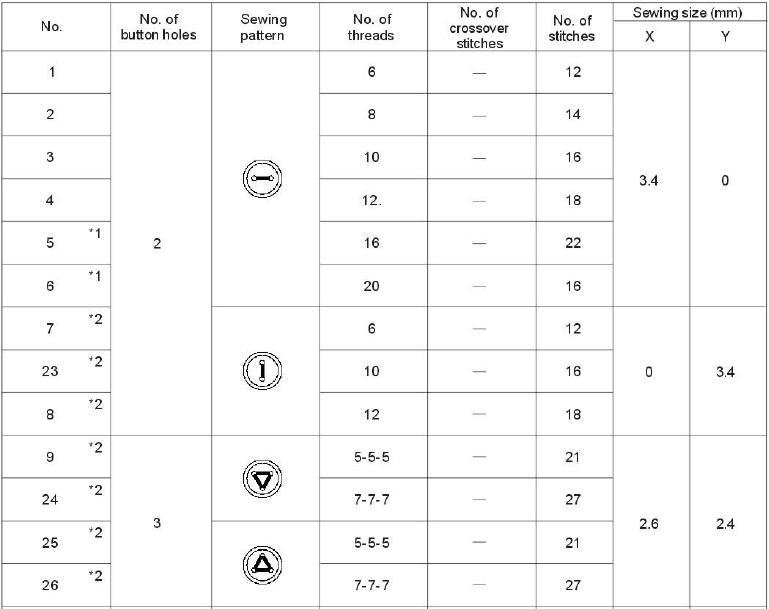

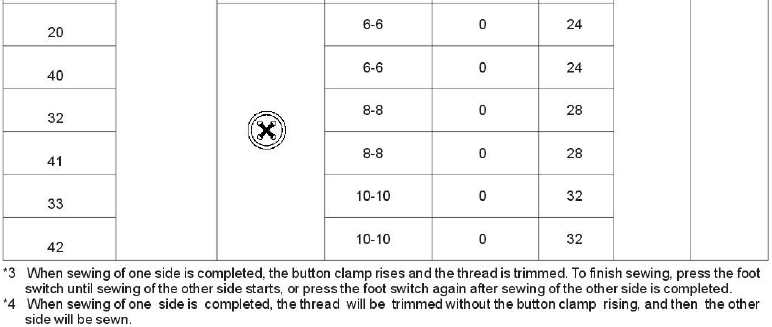

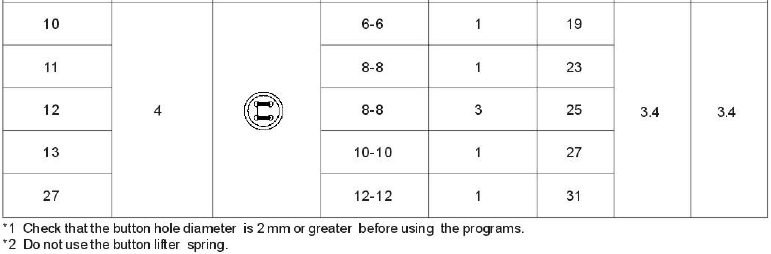

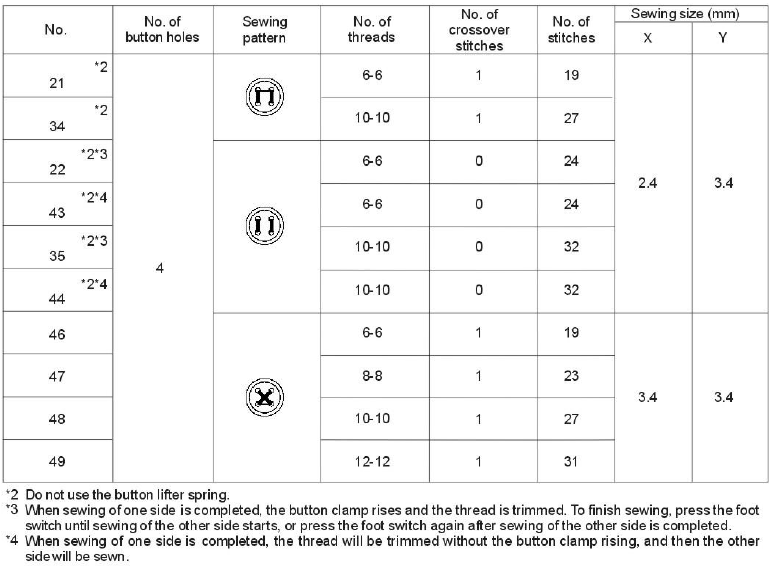

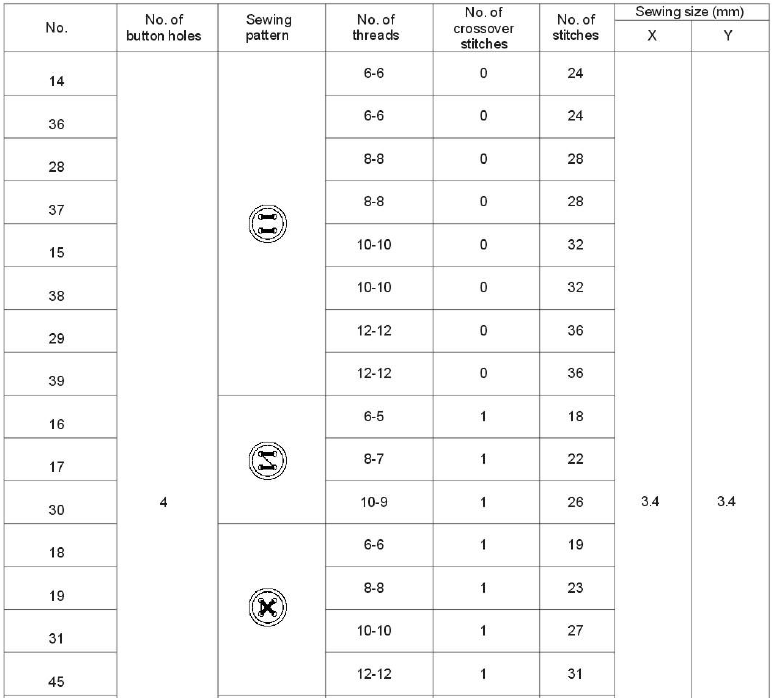

                      53 sewing patterns are set already

                      (Up to 200 patterns can be added.

                      Total number of stitches of stored data which can be added is within 200,000)

                      Motor

                      AC servo motor 550w



                      *1 use the optional button clamp B (S03634-101) for diameters of 20mm or greater

                      *2 the recommended CF cards are commercially-available ones from San Disk.


                      Delivery and Service:

                      · The machines have enough stock and can delivery within 7days.

                      · One year guarantee in mechanism parts except the quick-wear parts, three years guarantee in electronic parts.
