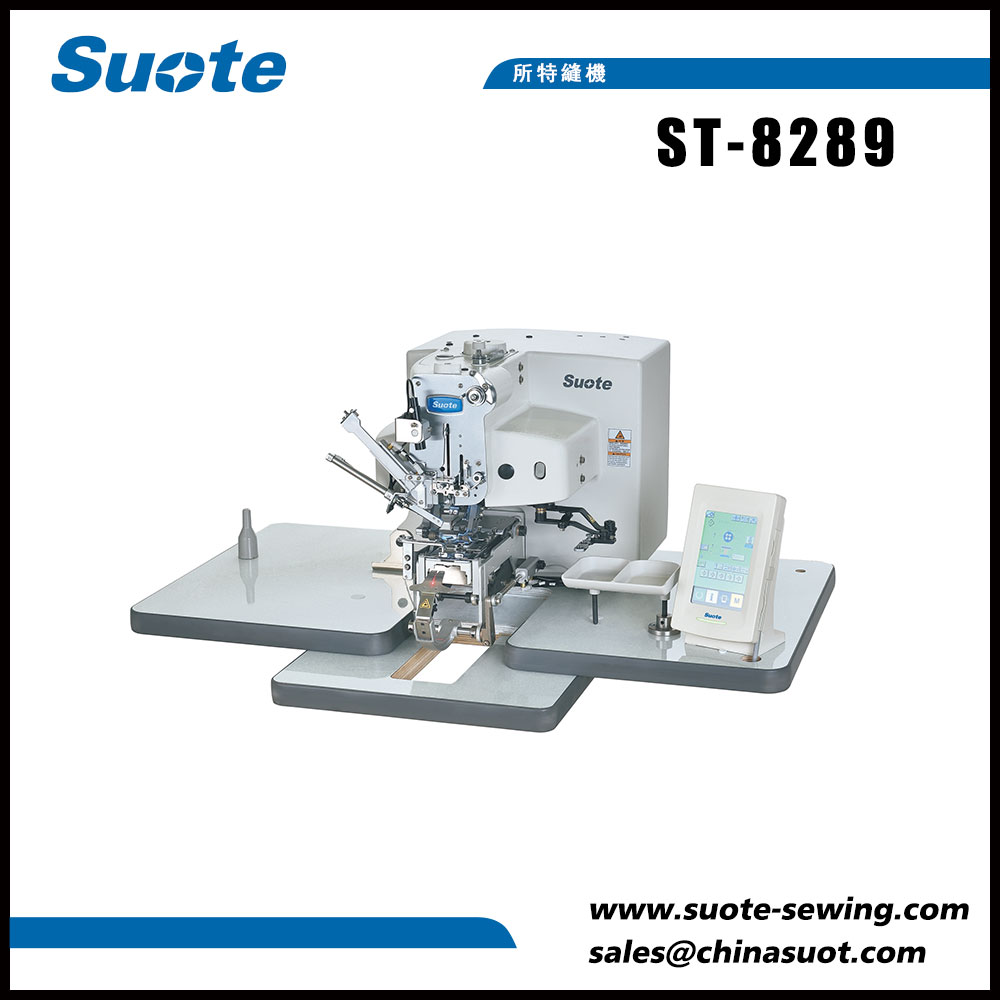

                      Computer Controlled High Speed Single Thread Chainstitch Button Neck Wrapping Machine
                      • Computer Controlled High Speed Single Thread Chainstitch Button Neck Wrapping MachineComputer Controlled High Speed Single Thread Chainstitch Button Neck Wrapping Machine

                      Computer Controlled High Speed Single Thread Chainstitch Button Neck Wrapping Machine

                      Computer Controlled High Speed Single Thread Chainstitch Button Neck Wrapping Machine
                      ·The machine demonstrates the highest productivity among button-neck-wrapping machines intended for men’s and ladie’s outer wear. · A single machine unit permits the quick changeover of types of buttons to be sewn,i.e., flat buttons, shank button, marble buttons and stay buttons with a one touch utility lever.

                      Model:ST-8289

                      Send Inquiry    PDF DownLoad

                      Product Description

                      Computer Controlled High Speed Single Thread Chainstitch Button Neck Wrapping Machine

                      This single machine can also sew flat buttons, shank buttons, marble buttons and stay buttons (counter buttons).

                      Exclusive active tension (electronic thread tension control system)

                      The exclusive active tension system for ST-8289 further improves responsiveness and allows delicate tension setting when the user changes fabrics

                      Thread tensions for button sewing and neck wrapping can be separately set on the operation panel.

                      The machine stores sewing conditions in memory on a pattern- by- pattern basis. Required sewing conditions can be exactly reproduced for every pattern.

                      Cycle sewing

                      ●The machine sews buttons on a double- breast suit, a garment that requires the sewing of different types of buttons,in a continuous manner.

                      ●Cycle sewing data can be set/edited with the sewing item graphically displayed on the operation panel (the number of buttons, button sewing locations, and sewing order of buttons).

                      ●The button loader can feed two types of buttons in a single sew ing cycle.

                      The color panel provides excellent operability

                      The operation panel is a touch-sensitive type LCD. The clear graphical displays make it much easier for the operator to set or modify sewing data.

                      A CompactFlashTM card can be used to store and transfer sewing data. This makes it possible for sewing machines at one or more factories to share data. In addition to the CompactFlash TM, the machine is provided as standard with a USB connector. As a result,CompactFlash and SD card) to enable sewing using the same sewing data among sewing machines in a plant or among subcontract plants.

                      Specifications

                      Model ST-8289
                      Stitch type Single-thread chain stitch
                      Sewing speed Max. sewing speed 1,800sti/min  (neck-wrapping),1,200sti/min  (button  sewing)
                      Normal sewing speed 1,500sti/min(neck-wrapping),1,000sti/min   (button   sewing)
                       Application Sewing of various button types
                      Button size Sewing  button  without  neck-wrapping:φ8~φ38mm
                      Sewing  button  with  neck-wrapping:φ8~φ32mm
                      Counter   button:φ8~φ25mm
                      Display screen for setting basic
                      shape-setting
                      Distance between buttonholes:1.5~6.0mm  (in increments of 0.1mm)
                      Height of neck-wrap:0,1.5~10.0mm  (in increments of 0.1mm)
                      Number of cross-over stitches:2~64(inincrements of 2)
                      Number of data that can be input Max.99  patterns
                      Number of cycle stitch patterns The number of registered patterns:20
                      (30 patterns for one cycle)
                      Languages supported for operation pane Japanese, English, Chinese, Spanish, Italian, French, German, Portuguese, Turkish, Vietnamese, Korean, Indonesian, Russian, Japanese, English, Simplified and Traditional Chinese
