Home > Products > Industrial Sewing Machine > Pattern Sewing Machine > Small Mouth Pattern Sewing Machine
Small Mouth Pattern Sewing Machine
Small Mouth Pattern Sewing Machine mainly use to sewing special samll mouth products such as jeans trouser legs, boots, bags and toys. Material can move by automatic feeding device, avoid shifting.Suote is a professional manufacturer of Small Mouth Pattern Sewing Machine. Our professional expertise in manufacturing Small Mouth Pattern Sewing Machine has been honed over the past 20+ years.
Model:ST-8342G-XZ (220*100mm)
Send Inquiry PDF DownLoad
Product Description

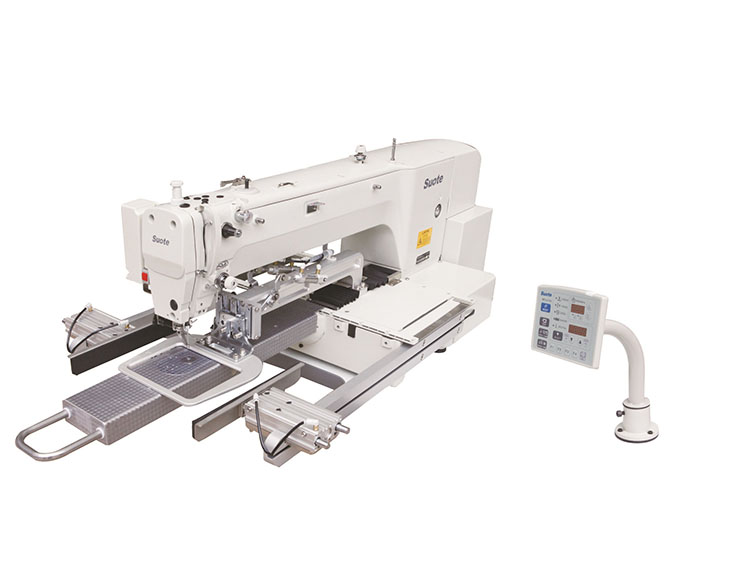

Small mouth pattern sewing machine ST-342G-XZ (220*100mm)
This machine mainly use to sewing special samll mouth products such as jeans trouser legs, boots, bags and toys. Material can move by automatic feeding device, avoid shifting.
Introduction of Small Mouth Pattern Sewing Machine
·high quality sewing controlled by computer program.
·automatic clamping improves efficiency and avoids shifting.
·easy to program and edit by LCD programmer.
·Sewing area: 130*100mm
Features of Small Mouth Pattern Sewing Machine
|
|
|
Direct Drive
|
Typical Application of Small Mouth Pattern Sewing Machine
|
|
|
|
Jeans |
Bag |
Specification of Small Mouth Pattern Sewing Machine
|
Stitch form |
Single needle locktitch |
|
Max sewing. speed |
2,700 sti/min |
|
Feed mechanism |
Intermittent feed (pluse motor drive) |
|
Stitch length |
0.05-12.7mm |
|
Max number of stitches |
20,000 stitches per patterns |
|
Height of stepping presser foot |
22 mm |
|
Stepping presser foot stroke |
2-4.5mm, 4.5-10mm or 0 (factory setting: 3mm) |
|
Hook |
Double-capacity shuttle hook |
|
Motor |
AC servo motor 550w |
|
Power supply |
Single phase 100V/220V, 3-phase 200V/220V/380V/400V 400VA |
|
Air pressure |
0.5 Mpa 1.7L / min |
Delivery and Service of Small Mouth Pattern Sewing Machine:
·The machines have enough stock and can delivery within 7days.
·One year guarntee in mechanism parts except the quick-wear parts, three years guarntee in electronic parts.
Hot Tags: Small Mouth Pattern Sewing Machine, China, Manufacturers, Suppliers, Factory, Made In China, Best, For Sale, Brother Type, Buy, Price, Service, High Quality, In Stock
