Electronic Logo Pattern Sewer

Suote is a professional manufacturer of Electronic Logo Pattern Sewer. Our professional expertise in manufacturing Electronic Logo Pattern Sewer has been honed over the past 20+ years.Electronic Logo Pattern Sewer is usted to sew different size leather label,brand label,warning labels on jeans,bags,car seats,etc.With help of special presser foot and molds,these labels can be sewn in materual precisely.

Model:ST-8311G-FZ

Send Inquiry PDF DownLoad

Product Description

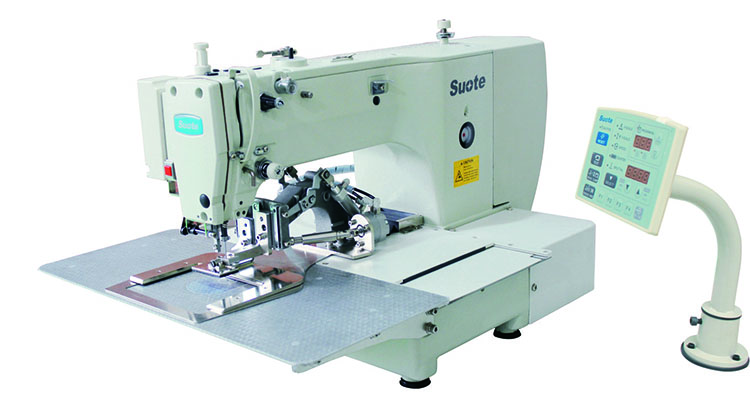

Electronic Logo pattern sewer ST-8311G-FZ

Electronic Logo pattern sewer

Programmable pattern sewing machine with flip flop device: is usted to sew different size leather label,brand label,warning labels on jeans,bags,car seats,etc.With help of special presser foot and molds,these labels can be sewn in materual precisely.

Introduction of Electronic Logo Pattern Sewer

·Sewing data is sewn faithfully and attractively.

·High maximum sewing speed

·Economical operation with low power consumption

·Work clamp lift amount can be adjusted easily from the operation panel

·Easy-to-use programmer（optional product）

·Sewing area: 130*100mm

Features of Electronic Logo Pattern Sewer

Direct Drive

Typical Application of Electronic Logo Pattern Sewer


Jeans	Bag	Sports shoes	Car articles

Specification of Electronic Logo Pattern Sewer

	ST-8311G-CH	ST-8326G-CH	ST-811G-FZ	ST-8326G-FZ	ST-8342G-FZ
Sewing machine	Lock stitch pattern tacking machines
Stitch form	Single needle lock stitch
Max.sewing speed	2,700 sti/min
Sewing area(X*Y)	Max.130*100mm	Max.200*100mm	Max.130*100mm	Max.200*100mm	Max.300*200mm
Feed mechanism	Intermittent feed (pulse motor drive)
Stitch length	0.05 - 12.7mm
Max.number of stitches	20,000 stitches per pattern
Work clamp drive	Pulse motor drive/ Pneumatic drive	Pulse motor drive	Pulse motor drive/ Pneumatic drive	Pulse motor drive	Pulse motor drive
Work clamp lift amount	-0□S:Max .25mm - 0□A:Max .30mm	Max.30mm	-0□S:Max .25mm - 0□A:Max .30mm	Max.30mm	Max.30mm
2-step work clamp	-0□S:Unit work clamp -0□A:Separate work clamp	Separate work clamp	-0□S:Unit work clamp -0□A:Separate work clamp	Separate work clamp	Unit work clamp
Height of stepping presser foot	22mm	19.5mm	22mm	19.5mm	22mm
Stepping presser foot stroke	2 - 4.5mm,4.5 - 10mm or 0 (Factory setting :3 mm)
Hook	Double-capacity shuttle hook (Standard capacity hook: Option)
Thread wiper	Standard equipment
Thread trimmer	Standardequipment
Data storage media	Flash memory (Sewing patterns can be added using CF card),or USD through LCD Programmer
Motor	AC servo motor 550W
Power supply	Single phase 100V/220V, 3-phase 200V/220V/380V/400V 400VA
Air pressure/ consumption	0.5 Mpa 1.7L / min

Delivery and Service of Electronic Logo Pattern Sewer:

·The machines have enough stock and can delivery within 7days.

·One year guarntee in mechanism parts except the quick-wear parts, three years guarntee in electronic parts.
