Electronic Label Stitch Pattern Sewer

Electronic Label Stitch Pattern Sewer

Suote is a professional manufacturer of Electronic Label Stitch Pattern Sewer. Our professional expertise in manufacturing Electronic Label Stitch Pattern Sewer has been honed over the past 20+ years.Suote with specialized technologu, high-quality service system of perfection and production experience for many years, develops the special machinery. The following is about Electronic Label Stitch Pattern Sewer related, I hope to help you better understand Electronic Label Stitch Pattern Sewer.

Model:ST-8326G-FZ

Send Inquiry    PDF DownLoad

Product Description

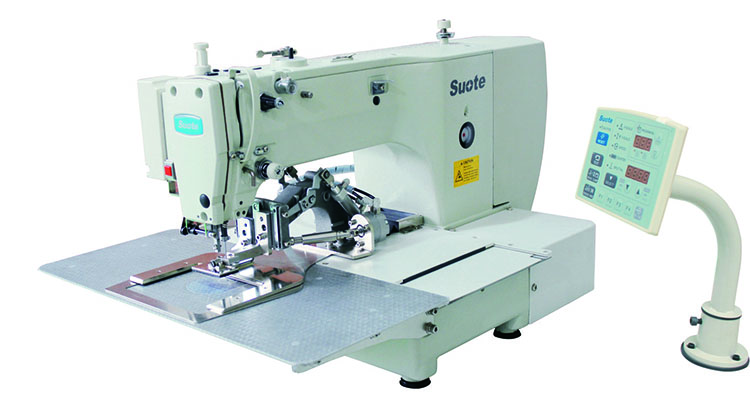

Electronic label stitch pattern sewer ST-8326G-FZ

Electronic Label Stitch Pattern Sewer

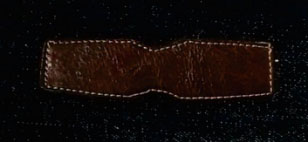

Programmable pattern sewing machine with flip flop device: is usted to sew different size leather label,brand label,warning labels on jeans,bags,car seats,etc.With help of special presser foot and molds,these labels can be sewn in materual precisely.


Introduction of Electronic Label Stitch Pattern Sewer

·Sewing data is sewn faithfully and attractively.

·High maximum sewing speed

·Economical operation with low power consumption

·Work clamp lift amount can be adjusted easily from the operation panel

·Easy-to-use programmer(optional product)

·Sewing area: 220*100mm


Features of Electronic Label Stitch Pattern Sewer

Direct Drive

Typical Application of Electronic Label Stitch Pattern Sewer

Jeans

Bag

Sports shoes

Car articles


Specification of Electronic Label Stitch Pattern Sewer


ST-8311G-CH

ST-8326G-CH

ST-811G-FZ

ST-8326G-FZ

ST-8342G-FZ

Sewing machine

Lock stitch pattern tacking machines

Stitch form

Single needle lock stitch

Max.sewing speed

2,700 sti/min

Sewing area(X*Y)

Max.130*100mm

Max.200*100mm

Max.130*100mm

Max.200*100mm

Max.300*200mm

Feed mechanism

Intermittent feed  (pulse motor drive)

Stitch length

0.05 - 12.7mm

Max.number of stitches

20,000 stitches per pattern

Work clamp drive

Pulse motor drive/

Pneumatic drive

Pulse motor drive

Pulse motor drive/

Pneumatic drive

Pulse motor drive

Pulse motor drive

Work clamp lift amount

-0□S:Max .25mm

- 0□A:Max .30mm

Max.30mm

-0□S:Max .25mm

- 0□A:Max .30mm

Max.30mm

Max.30mm

2-step work clamp

-0□S:Unit work clamp
-0□A:Separate work clamp

Separate work clamp

-0□S:Unit work clamp
-0□A:Separate work clamp

Separate work clamp

Unit work clamp

Height of stepping presser foot

22mm

19.5mm

22mm

19.5mm

22mm

Stepping presser foot stroke

2 - 4.5mm,4.5 - 10mm or 0 (Factory setting :3 mm)

Hook

Double-capacity shuttle hook (Standard capacity hook: Option)

Thread wiper

Standard equipment

Thread trimmer

Standardequipment

Data storage media

Flash memory (Sewing patterns can be added using CF card)

Motor

AC servo motor 550W

Power supply

Single phase 100V/220V,  3-phase 200V/220V/380V/400V 400VA

Air pressure/

consumption

0.5 Mpa 1.7L / min


Delivery and Service of Electronic Label Stitch Pattern Sewer:

·The machines have enough stock and can delivery within 7days.

·One year guarntee in mechanism parts except the quick-wear parts, three years guarntee in electronic parts.
