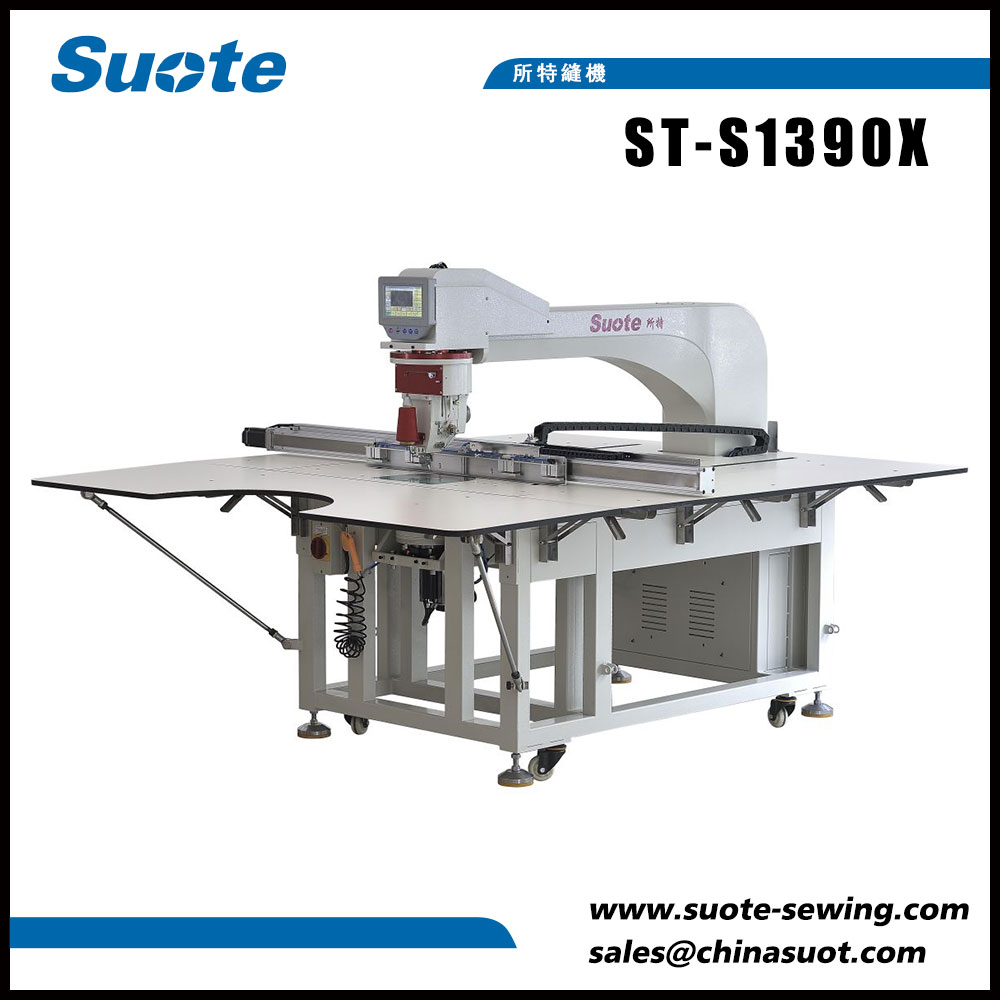

Machine Head Rotating Intelligent Template Machine
  • Machine Head Rotating Intelligent Template MachineMachine Head Rotating Intelligent Template Machine

Machine Head Rotating Intelligent Template Machine

Suote is a professional manufacturer and supplier of machine head rotating intelligent template machine in China.We have been specialized in template machine for 20+ years.Suote with professional technology,high quality service system of perfection and production experience for many years,develops the special machinery.Our products are used in all kinds of clothing and clothing craft production.The following is about detailed product information and specifications to help you better understand the machine to fit your needs.

Model:ST-S1390X

Send Inquiry    PDF DownLoad

Product Description

Product introduction of machine head rotating intelligent template machine

Machine head rotating intelligent template machine is the special product in the template sewing machine series.Machine head can rotate 360 degree and keep the stitches in the same direction to insure perfect stitches.Machine head rotating intelligent has automatic template recognition system,using radio frequency singal recognition  technolnogy,which makes it easier to change templates and makes that automatic recognition accuracy is high. With intelligent operation system,the machine is easy to operate.

Product specifications of machine head rotating intelligent template machine

Model

ST-S1390X

Name

Machine Head Rotating Intelligent Template Machine

Sewing Area

1300mm×900mm

360°Rotating

Servo Motor 600W

Stitch

Intelligent template machine(2 times Rotary Hook)

Single needle lock stitch

Max.Sewing Speed

3500sti/min

Feed System

X screw servo motor 600W

Y screw servo motor 750W

Stitch Length

0.05-50mm

Max Stitches

20000stitches/program

Presser Foot Lift

22mm

Presser Foot Stroke

0 or 2-10mm(factory setting 5mm)

Ratary Hook

Rotary Hook(standard rotary hook is option)

Thread Trimming Device

Standard device(circle knife)

Data Storage Media

USB

Main Motor

AC Servo Motor 750W

Pressure

0.4-0.6Mpa 1.7L/min

Product feasure and application of machine head rotating intelligent template machine

1.The machine head rotation installs the reducer to make noise lower,smooth rotation,reduced intertia,high stability and easy debugging.

2.The operation panel support u disk data transmission/reading/storage.

3.Independent motor is used for upper and lower machine head,no belt drive,lower noise,better stability,more accurate synchronization up and down.
