                      Intelligent Template Machine
                      • Intelligent Template MachineIntelligent Template Machine

                      Intelligent Template Machine

                      Suote is a professional manufacturer and supplier of intelligent template machine in China.We have been specialized in template machine for 20+ years.Suote with professional technology,high quality service system of perfection and production experience for many years,develops the special machinery.Our products are used in all kinds of clothing and clothing craft production.The following is about detailed product information and specifications to help you better understand the machine to fit your needs.

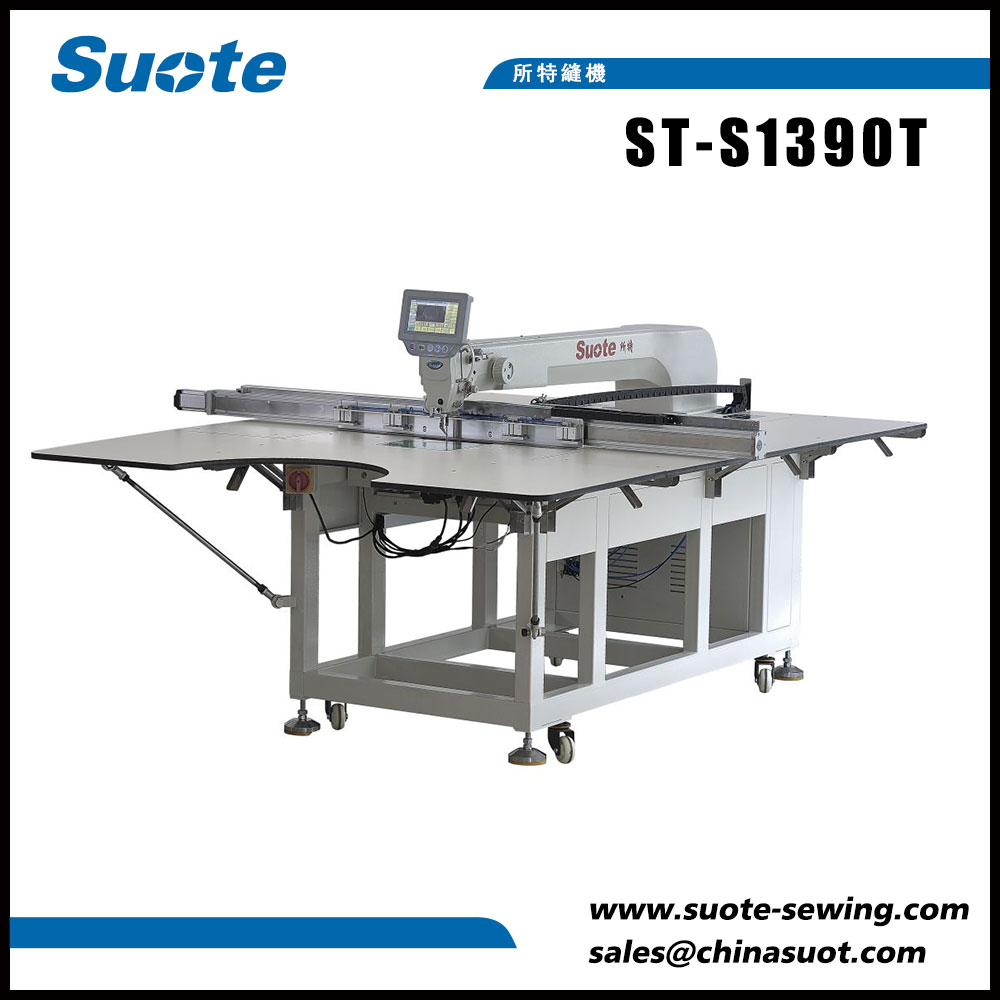

                      Model:ST-S1390T

                      Send Inquiry    PDF DownLoad

                      Product Description

                      Product introduction of machine head lifting rotating intelligent template machine

                      Intelligent template machine is the normal product in the template sewing machine series.Machine head design as bearing thread take-up to keep dry head and ensure clothing clean.Base plate design as whole plate,which makes the machines much more stable.Intelligent template machine has huge operate space,suitable for different clothing.

                      Product specifications of machine head lifting rotating intelligent template machine

                      Model

                      ST-S1390X

                      Name

                       Intelligent Template Machine

                      Sewing Area

                      1300mm×900mm

                      Stitch

                      Intelligent template machine(2 times Rotary Hook)

                      Single needle lock stitch

                      Max.Sewing Speed

                      3500sti/min

                      Feed System

                      X screw servo motor 600W

                      Y screw servo motor 750W

                      Stitch Length

                      0.05-50mm

                      Max Stitches

                      20000stitches/program

                      Presser Foot Lift

                      22mm

                      Presser Foot Stroke

                      0 or 2-10mm(factory setting 5mm)

                      Ratary Hook

                      Rotary Hook(standard rotary hook is option)

                      Thread Trimming Device

                      Standard device(circle knife)

                      Main Motor

                      AC Servo Motor 600W

                      Pressure

                      0.4-0.6Mpa 1.7L/min

                      Product feature and application of intelligent template machine

                      1.Our products are used in all kinds of clothing and clothing craft production.

                      2.It used 2 times rotary hook.

                      3.The operation panel support u disk data transmission/reading/storage.
