Pillow Sewing Machine

Suote is a professional manufacturer of Pillow Sewing Machine. Our professional expertise in manufacturing Pillow Sewing Machine has been honed over the past 20+ years.Electronic pillow sewing machine ST-8430D-BZ ·Beautiful sewing and easy to adjust sewing functions . ·Stable sewing quality with Digital Tension. ·Extremely low noise and vibration for operator-friendly sewing. ·Overwhelmingly superior productivity with the fast cycle time. ·High energy saving . ·Easy maintenance. ·Clean sewing with semi-dry type. ·User-friendly Operation panel. ·Environment-conscious.

Model:ST-8430D-BZ

Send Inquiry

Product Description

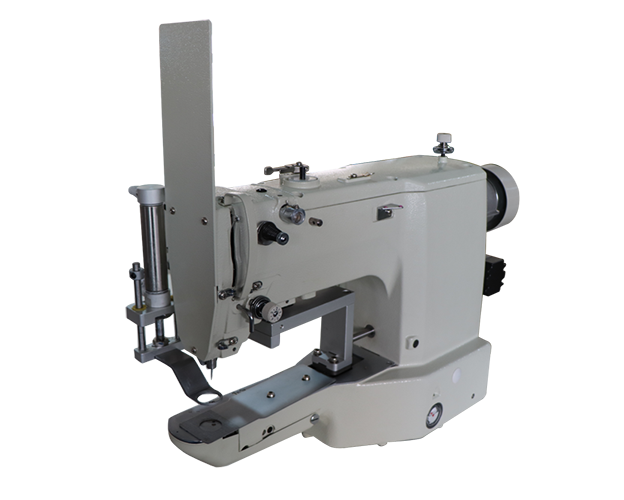

Electronic pillow sewing machine ST-8430D-BZ

Pillow Sewing Machine

Introduction of this Pillow Sewing Machine

·Beautiful sewing and easy to adjust sewing functions .

·Stable sewing quality with Digital Tension.

·Extremely low noise and vibration for operator-friendly sewing.

·Overwhelmingly superior productivity with the fast cycle time.

·High energy saving .

·Easy maintenance.

·Clean sewing with semi-dry type.

·User-friendly Operation panel.

·Environment-conscious.

Specifications of this Pillow Sewing Machine:ST-8430FX-BZ

	ST-8430FX-L	ST-8430FX-R	ST-8430FX-BZ
Application	Belt loop	Elastic stitch	Pillow stitch
Stitch formation	Single needle lock stitch
Max.sewing speed	3,200sti/min
Sewing area (X-Y)	Max.40*30mm		Max Diameter 30mm
Stitch length	0.05-12.7mm
Feed mechanism	Y-θ intermittent feed mechanism（pulse-motor driven mechanism）
No.of stitches	Variable(Refer to"Program List" for details on the number of stitches for sewing patterns that are already preset.)
Max.No of stitches	5,000 stitches/pattern
Work clamp lifter	Pulse motor drive system
Work clamp height /Button clamp height	Max .17mm		Max .50mm
Rotary hook	Shuttle hook (Double shuttle hook,optional)
Digital tension	Standard equipment
Thread wiper	Standard equipment
Thread trimmer	Standard equipment
Thread nipper	Standard equipment
Data storage method	Flash memory(Any sewing pattern can be added using SD card)
External data storage method	SD card
No.of cycle programs	30 cycle(50 programs for each cycle)
No. of stored data	89 sewing patterns are set already
	Up to 512 patterns can be added .Total number of stitches of stored data which can be added is within 500,000
Motor	AC servo motor 550W (Direct drive)
Power supply	Single-phase 110V/220V/230V,3-phase 220V/380V/400V,400VA

Delivery and Service of this Pillow Sewing Machine:

· The machines have enough stock and can delivery within 7days.

· One year guarntee in mechanism parts except the quick-wear parts, three years guarntee in electronic parts.
