Suote is a professional manufacturer of Electronic Pattern Serwer. Our professional expertise in manufacturing Electronic Pattern Serwer has been honed over the past 20+ years.China Electronic Pattern Serwer brother type manufacturers and factory - Zhejiang suote sewing machine mechanism co.,ltd.Sincerely welcome friends from all walks of life come to visit, guide and negotiate business.

Model:ST-8326G (220*100mm)

Send Inquiry    PDF DownLoad

Product Description

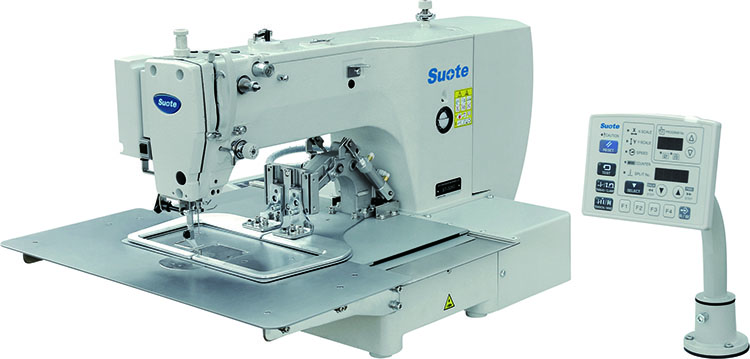

Electronic pattern serwer ST-8326G (220*100mm)

Electronic Pattern Serwer

Introduction of this Electronic Pattern Serwer

·Sewing data is sewn faithfully and attractively.

·High maximum sewing speed

·Economical operation with low power consumption

·Work clamp lift amount can be adjusted easily from the operation panel

·Easy-to-use programmer(optional product)

·Sewing area: 220*100mm

Features of this Electronic Pattern Serwer

Direct Drive

Typical Application of this Electronic Pattern Serwer



Sports shoes

Car articles

Specification of this Electronic Pattern Serwer




Sewing machine

Lock stitch pattern tacking machines

Stitch form

Single needle lock stitch

Max.sewing speed

2,700 sti/min

Sewing area(X*Y)




Feed mechanism

Intermittent feed  (pulse motor drive)

Stitch length

0.05 - 12.7mm

Max.number of stitches

20,000 stitches per pattern

Work clamp drive

Pulse motor drive/

Pneumatic drive

Pulse motor drive

Pulse motor drive

Work clamp lift amount

 -0□S : Max . 25mm

 - 0□A : Max . 30mm



2-step work clamp

  -0□S:Unit work clamp
-0□A:Separate work clamp

Separate work clamp

Unit work clamp

Height of stepping presser foot




Stepping presser foot stroke

2 - 4.5mm,4.5 - 10mm or 0 (Factory setting :3 mm)


Double-capacity shuttle hook (Standard capacity hook: Option)

Thread wiper

Standard equipment

Thread trimmer


Data storage media

Flash memory (Sewing patterns can be added using CF card)


AC servo motor 550W


Machine head: 88 kg ,Operation panel: approx 0.6 kg, Control box:14.2-16.2kg

 (Depending on destination)

Power supply

Single phase 100V/220V,  3-phase 200V/220V/380V/400V 400VA

Air pressure/consumption

0.5 Mpa 1.7L / min

Option Device of this Electronic Pattern Serwer:

Electronic Pattern Serwer

Heavy Duty Pattern Sewing Machine

Electronic Pattern Serwer

Flip Flop for Label

Sliding Presser for Label

Patch Pocket

Heavy Duty Pattern Sewing Machine

Heavy Duty Pattern Sewing Machine

Electronic Pattern Serwer



LCD Programmer

Delivery and Service of this Electronic Pattern Serwer:

·The machines have enough stock and can delivery within 7days.

·One year guarntee in mechanism parts except the quick-wear parts, three years guarntee in electronic parts.
