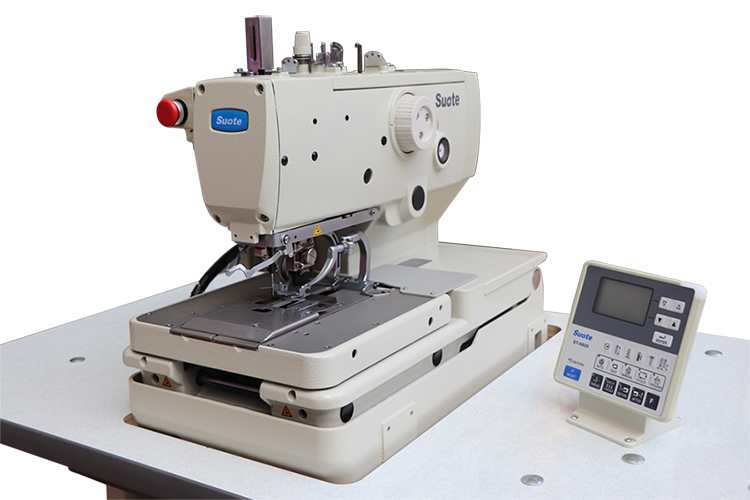

Electronic Eyelet Button Holer

Suote is a professional manufacturer of Electronic Eyelet Button Holer. Our professional expertise in manufacturing Electronic Eyelet Button Holer has been honed over the past 20+ years.Electronic eyelet button holer, special for jeans, ST-9820-02 · Enhanced productivity with the high max.sewing speed 2,500 sti/min · Fine stitches with high-precision stitch point · Large arm pocket allowing smooth material handling · Easy maintenance · Easy-to-use operation panel for everyone

Model:ST-9820-02

Send Inquiry PDF DownLoad

Product Description

Electronic eyelet button holer, special for jeans, ST-9820-02

Electronic Eyelet Button Holer

Introduction of this Electronic Eyelet Button Holer

Electronic Eyelet Button Holer

· Enhanced productivity with high max.sewing speed 2,500 sti/min

· Fine stitches with high-precision stitch point

· Large arm pocket allowing smooth material handling

· Easy maintenance

· Easy-to-use operation panel for everyone

Sewing shapes of this Electronic Eyelet Button Holer

Eyelet buttonhole				Straight buttonhole

Without bartack	Taper bartack	Straight bartack	Round bartack	Without bartack	Taper bartack	Straight bartack	Round bartack	Circular stitch

Feartures of this Electronic Eyelet Button Holer

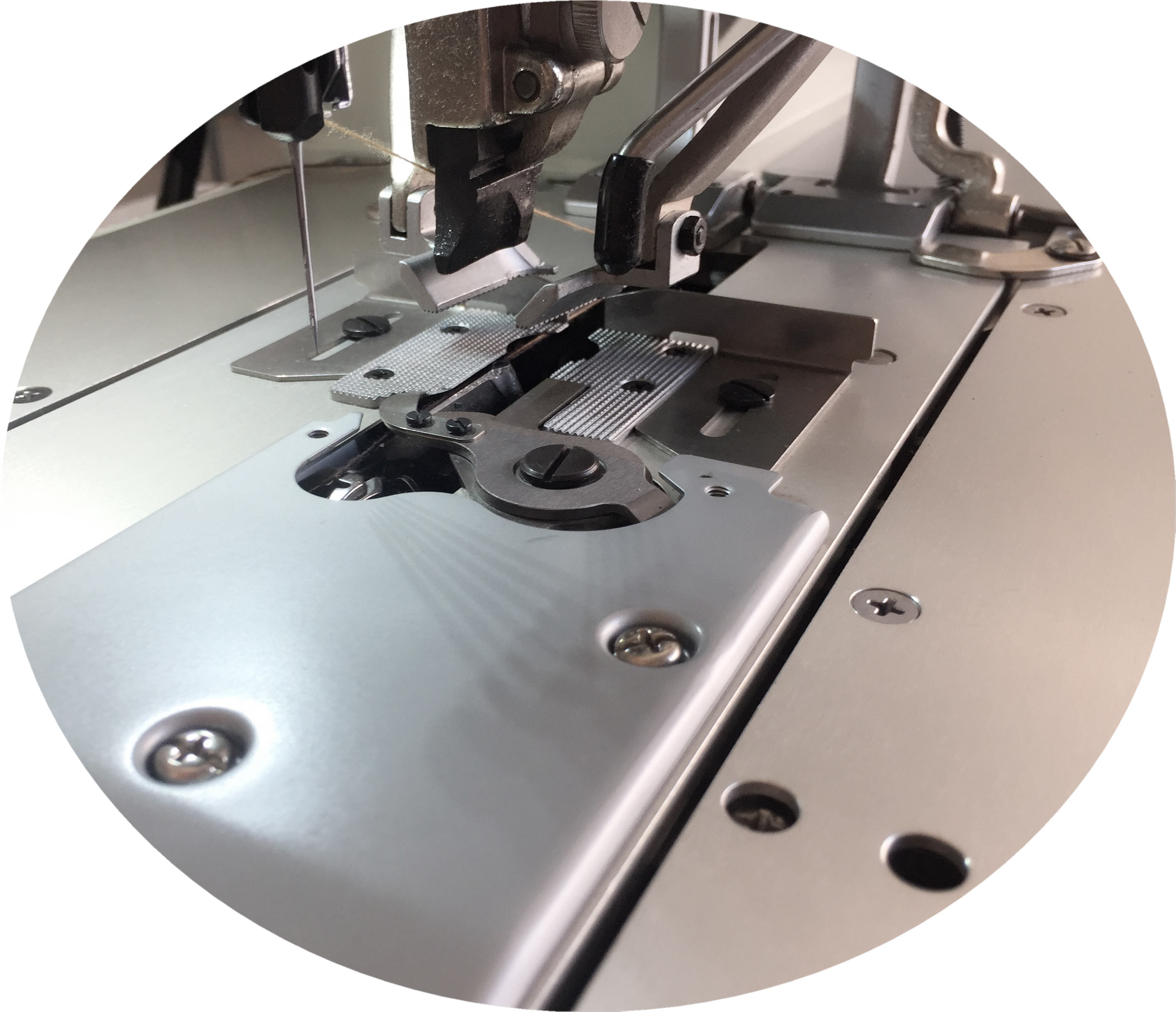

Double chain stitch

Button
holing

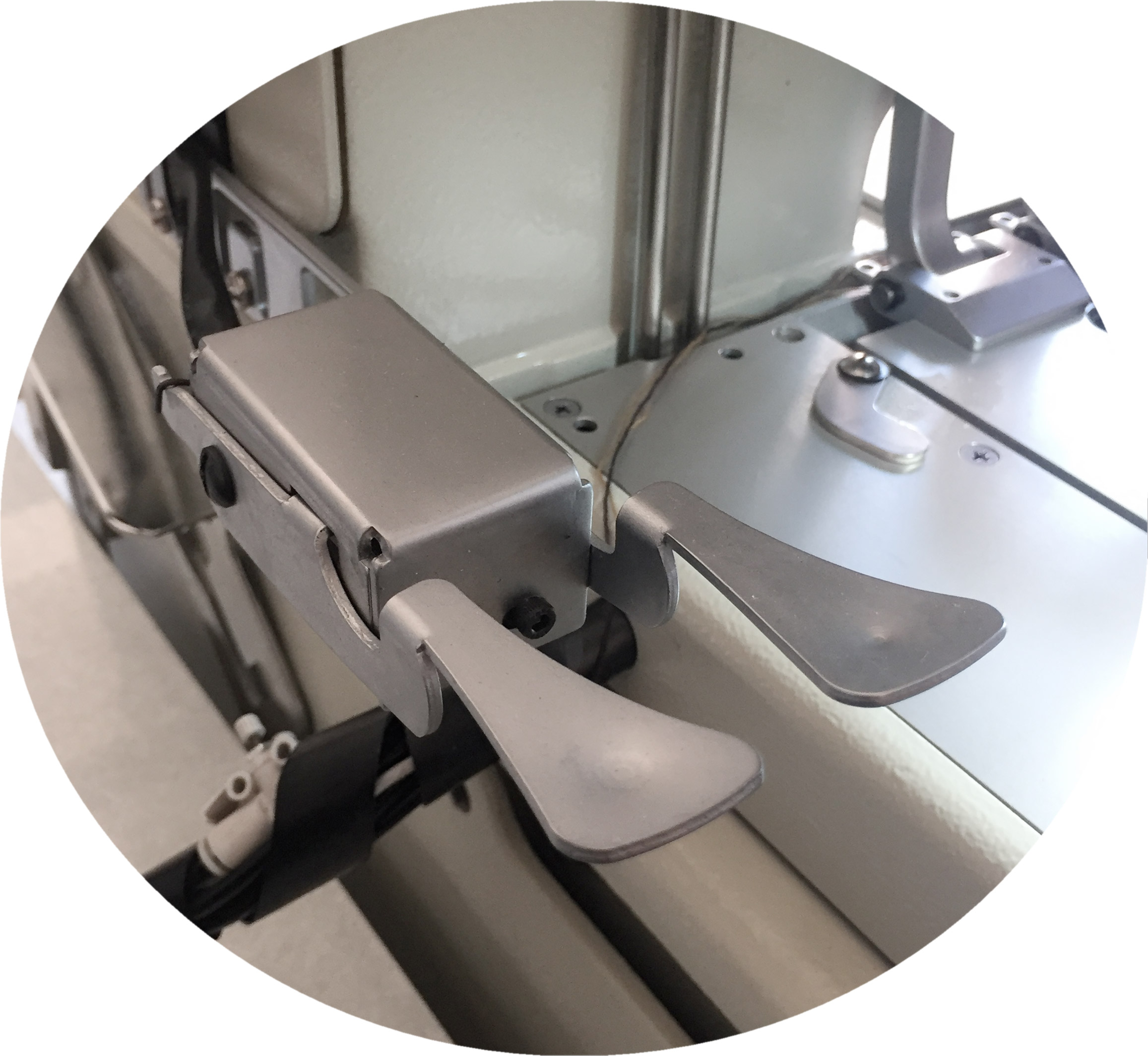

Thread
trimmer

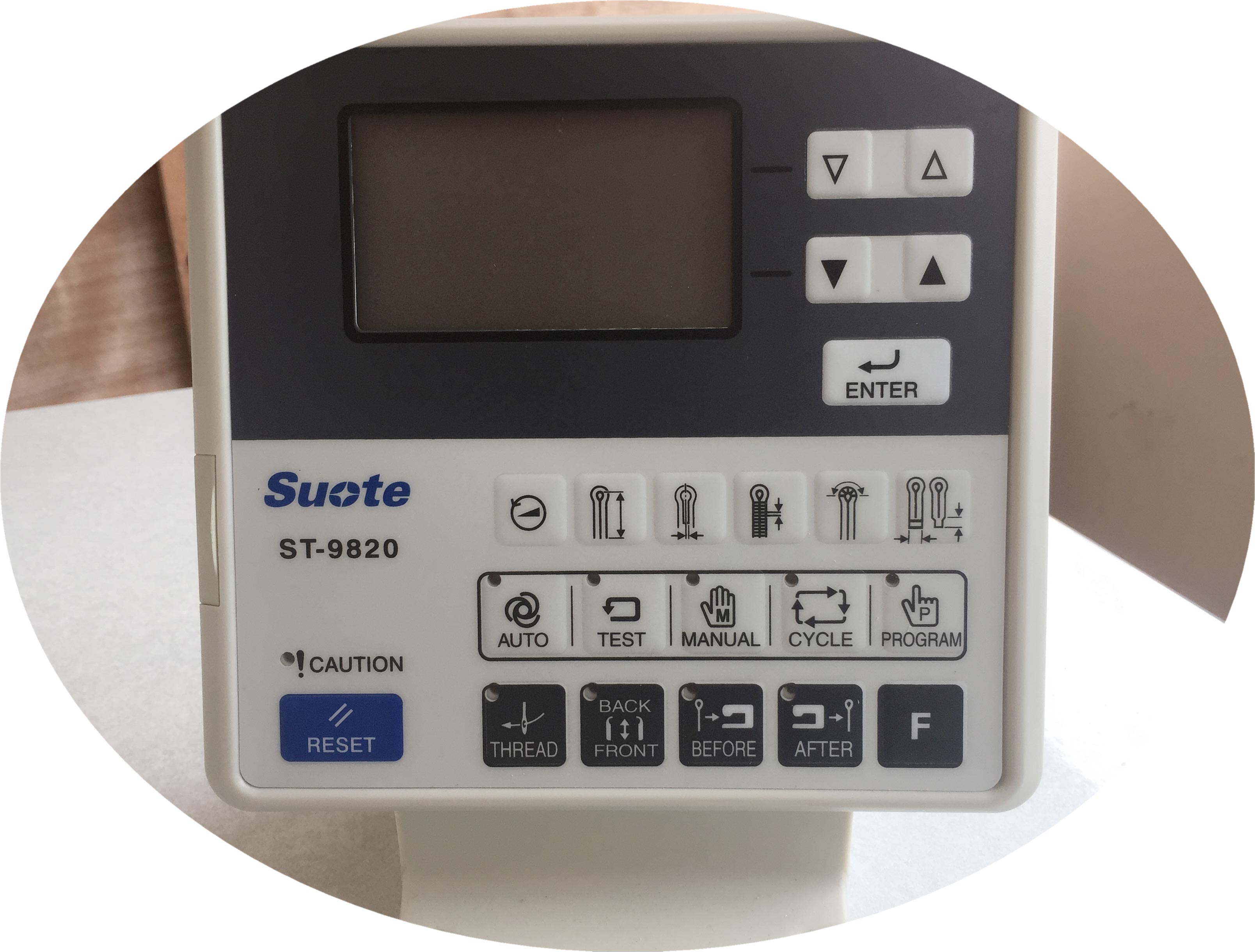

Operational Panel

Typical Application of this Electronic Eyelet Button Holer


Jacket	Trousers	Jeans

Specifications of this Electronic Eyelet Button Holer:ST-9820-01

Specifications		-00	-01	-02
				L2230	L1826*1
Thread Trimmer	Upper thread trimmer	Long thread cut	Long thread cut	Short thread cut
	Lower thread trimmer	None	Long thread cut	Short thread cut
Main applications		Ladies’ wear	Men’s wear, Casual wear	Jeans	Jeans, Trousers
Other applications		Men’s wear, Casual wear, Jeans, Trousers	Ladies’ wear, Jeans, Trousers
Features		Only the upper thread is cut by the thread trimmer. Buttonholes up to 50mm long can be sewn	All the threads are cut long by the thread trimmers. The long thread ends can be securely held in the subsequent process. It is suitable for cases that require accurate short end or manual trimming.	All the threads are cut short by the thread trimmers. This saves the trouble of manual trimming and reduces consumption of the thread.
Sewing shape
Sewing length		Eyelet buttonhole: 8-50mm Straight buttonhole: 5-50mm	Eyelet buttonhole: 8-42mm Straight buttonhole: 5-42mm	22-30 mm L1422 (14-22mm)3 L1826 (18-26mm)3 L2634 (26-34mm)3 L3442 (34-42mm)3	18-26 mm L1422 (14-22mm)3 L1826 (18-26mm)3 L2634 (26-34mm)3 L3442 (34-42mm)3
Length of work clamp (standard)		30 mm		30 mm		26 mm
Length of hammer (standard)		22 mm		24 mm		20 mm
Length of hammer (accessory)		30 mm		28 mm		24 mm
Sewing speed		1,000 - 2,500 sti/min
Stitch pitch		0.5-2.0 mm
Zigzag width		1.5 - 5.0 mm (Up to 4.0 mm in mechanical, up to 5.0 mm with zigzag width compensation)
Zigzag width (Factroy setting)		2.5mm		3.0mm
Taper bartack length		0-20mm
Height of work clamp		12 mm as standard (Available up to 16 mm)
Starting method		Foot switch (Treadle type, Two-pedal type), Hand switch (Two-lever type)
Feed mechanism		Intermittent feed by 3 pluse motors (X, Y,θ)
Needle*4		D0x558 Nm80 - Nm120 (SCHMETZ)
Needle (Factory setting)*5		DOx558 Nm100	DOx558 Nm90	DOx558 Nm110
Languages supported for operation panel		Japanese, English, Chinese, German, French, Spanish, Italian, Portuguese, Turkish, Indonesian, Vietnamese and Russian
Safty equipment		Emergency stop function and built-in automatic stopping device activated by safety circuit in case of trouble
Upper shaft motor		AC servo motor 550W

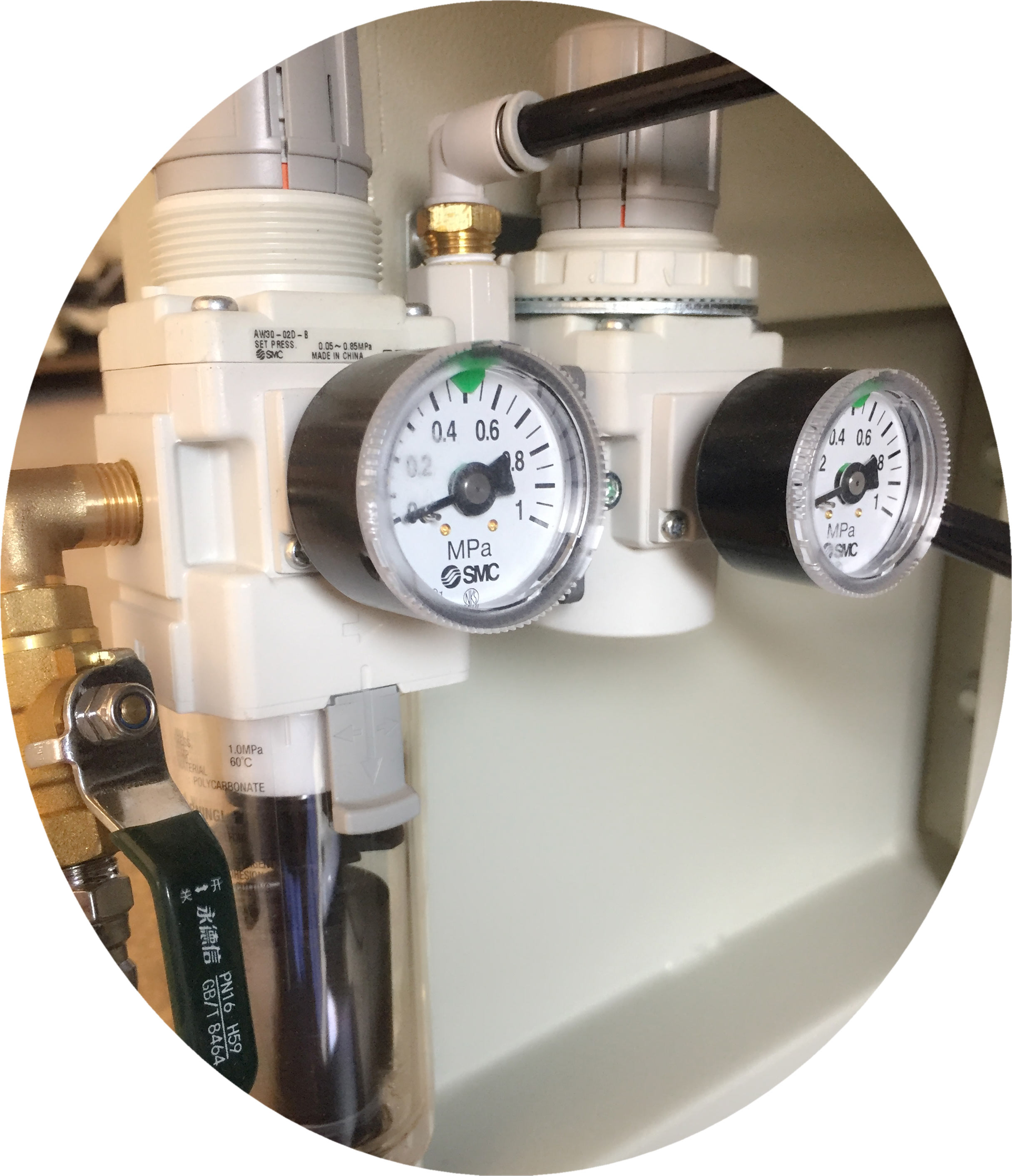

Air pressure		Main regulator: 0.5 Mpa, Hammer pressure regulator: 0.4 Mpa
Air consumption		43.2 l/min. (8 cycles/min.)
Weight		Machine head: Approx. 120kgs, Control box: 14.2 -16.2kgs (depending on the destination)
Power supply		Signle phase 100V/200V, 3-phase 200V/220V/380V/400V, 400VA

*1 Special specification for Chinese market

*2 When sewing the circular stitch by-02 specifications, lower threads won’t be cut

*3 Change of ranges L1422-L3422 is available by replaceing gauge parts.

*4 For Chinese market: DOx558 - NY2#12#16 (ORGAN)

*5 For Chinese market: -00:#16, -01:#14, -02:#18

Delivery and Service of this Electronic Eyelet Button Holer:

· The machines have enough stock and can delivery within 7days.

· One year guarntee in mechanism parts except the quick-wear parts, three years guarntee in electronic parts.
