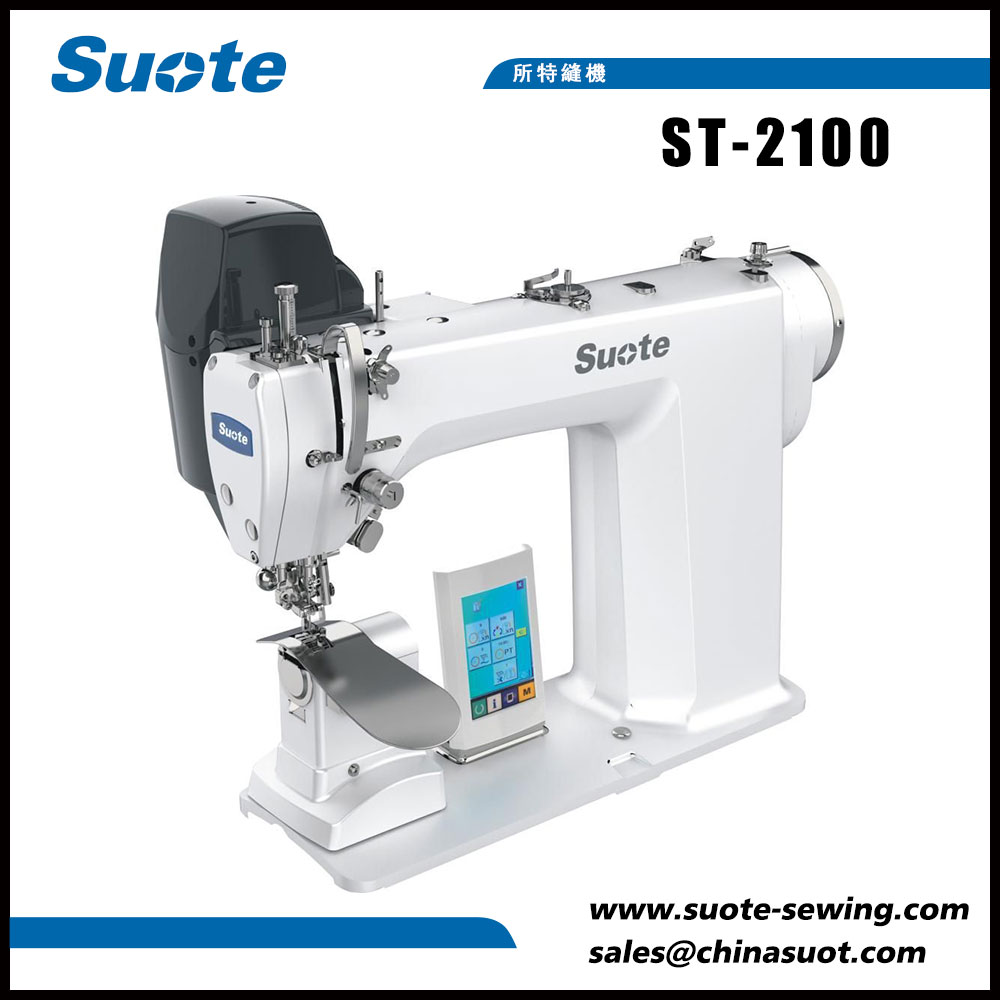

                      Computer-Controlled Lockstitch Sleeve Setting Machine
                      • Computer-Controlled Lockstitch Sleeve Setting MachineComputer-Controlled Lockstitch Sleeve Setting Machine

                      Computer-Controlled Lockstitch Sleeve Setting Machine

                      Suote is a professional manufacturer and supplier of computer-controlled lockstitch sleeve setting machine in China.We have been specialized in men’s suit sewing machine for 20+ years.Suote with professional technology, high-quality service system of perfection and production experience for many years, develops the special machinery.The following is about detailed product information and specifications to help you better understand the machine to fit your needs.

                      Model:ST-2100

                      Send Inquiry    PDF DownLoad

                      Product Description

                      Product introduction of machine head lifting rotating intelligent template machine

                      Computer-controlled lockstitch sleeve setting machine is the new product of men’s suit sewing machine.The machine comes with the direct-drive system,in which a compact AC servo motor is directly joined to the main shaft.It offers a quick startup,increased stopping accuracy and excellent responsiveness.Computer-controlled lockstitch sleeve setting machine adopts horizontal-axis full-rotary non-lubricated hook.The machine has special feed system,through intermittent belt feed with the direct-driven steeping motor,which can prevent an abrupt change in the shirring amount.

                      Product specifications of machine head lifting rotating intelligent template machine

                      Model

                      ST-2100

                      Max sewing speed*1

                      3500sti/min(feed pitch 1.5-4.0mm)

                      Feed system

                      Intermittent belt feed with the direct-driven steeping motor

                      Stitch length(both top and bottom)

                      1.5-6.0mm

                      Needle bar stroke

                      30.7mm

                      Needle

                      DP×17#10-#14

                      Thread take-up

                      Link type

                      Hook

                      Horizontal-axis full-rotary non-lubricated hook

                      Presser foot lift

                      By hand:5.5mm ,Auto:10mm

                      Amount of the alternating vertical movement of the presser foooot the presser foot and walking foot

                      Max.3.5mm

                      Adjustment of amount of the The alternating vertical movement of the presser foooot the presser foot and walking foot

                      Adjustment of stopping position in slot

                      Bottom and variable top feed stitch adjusting method

                      Data entry through the operation panel,stepping motor

                      Minimum resolution of bottom and variable top feed adjustment

                      0.1mm

                      Number of programs that can be input

                      99 programs

                      Number of steps that can be input(for one program)

                      30steps

                      Lubrication

                      No lubrication

                      Needle thread tension

                      Active tension(electric thread tension control system)

                      Right and left alternating sewing

                      Possible

                      Automatic reverse feed function

                      Provided as standard

                      Soft-start function

                      Provided as standard

                      Auto-lifter

                      Provided as standard

                      Power requirement/Power consumption

                      Single-phase 200-240V,560VA


                      Product feature and application of machine head lifting rotating intelligent template machine

                      1.The machine has touch-sensitive type LCD,which makes operation easy and improve performance.

                      2.The machine head is dry,making maintenance easy and ensuring clothing clean.

                      3.Increased lift of the press foot is easy for removal of a finished portion.

                      4.Stitch length is increased to ensure an adequate shirring amount even when a heavy material is used.
