Electronic Bar Tacker Sewing Machine

Electronic Bar Tacker Sewing Machine

Electronic bar tacker sewing machine ST-8430FX Introduction ·Beautiful sewing and easy to adjust sewing functions . ·Stable sewing quality with Digital Tension. ·Extremely low noise and vibration for operator-friendly sewing. ·Overwhelmingly superior productivity with the fast cycle time. ·High energy saving . ·Easy maintenance. ·Clean sewing with semi-dry type. ·User-friendly Operation panel. ·Environment-conscious.

Model:ST-8430FX

Send Inquiry

PDF Download

Product Description

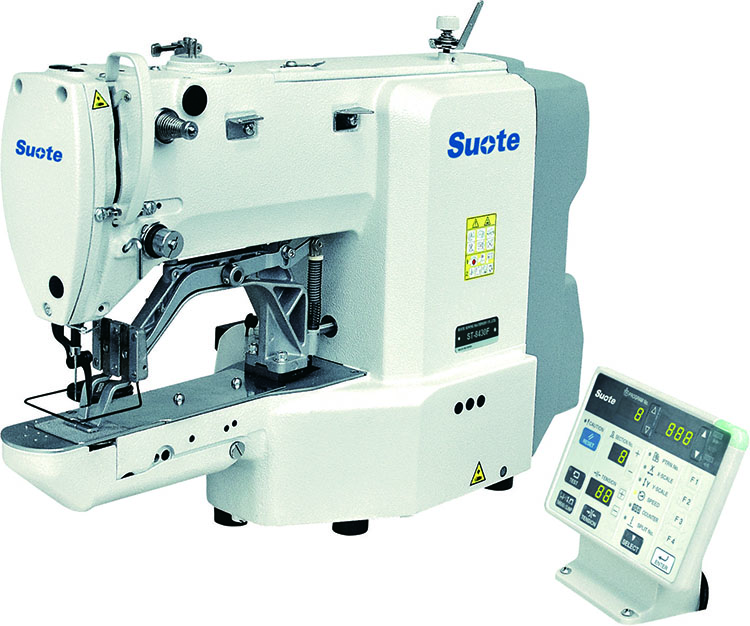

Electronic bar tacker sewing machine ST-8430FX



Electronic Bar Tacker Sewing Machine

Introduction

·Beautiful sewing and easy to adjust sewing functions .

·Stable sewing quality with Digital Tension.

·Extremely low noise and vibration for operator-friendly sewing.

·Overwhelmingly superior productivity with the fast cycle time.

·High energy saving .

·Easy maintenance.

·Clean sewing with semi-dry type.

·User-friendly Operation panel.

·Environment-conscious.



Feartures

Direct drive


Typical Application

Multi-use


ST-8430FX-3

ST-8430FX-5

ST-8430FX-K

ST-8430FX-F

ST-8438FX

Application

Medium

materials

Heavy

materials

Knitted

materials

Foundation

garments

Button

attaching

Stitch formation

Single needle lock stitch

Max.sewing speed

3,200sti/min

2,700sti/min

Sewing area (X-Y)

  Max.40*30mm

Max.6.4*6.4mm

Dimensions of buttons that can be Sewn

_

Outer diameter of buttons 8-30mm*1

Stitch length

0.05-12.7mm

0.05-6.4mm

Feed mechanism

Y-θ intermittent feed mechanism(pulse-motor driven mechanism)

No.of stitches

Variable(Refer to"Program List" for details on the number of stitches for sewing patterns that are already preset.)

Max.No of stitches

5,000 stitches/pattern

Work clamp lifter

Pulse motor drive system

Work clamp height /Button clamp height

Max .17mm

Max.13mm

Rotary hook

Shuttle hook  (Double shuttle hook,optional)

Digital tension

Standard equipment

Thread wiper

Standard equipment

Thread trimmer

Standard equipment

Thread nipper

Standard equipment

Data storage method

Flash memory(Any sewing pattern can be added using SD card)

External data storage method

SD card

No.of cycle programs

30 cycle(50 programs for each cycle)

No. of stored data

89 sewing patterns are set already

64 sewing patterns are set already

Up to 512 patterns can be added .Total number of stitches of stored data which can be added is within 500,000

Motor

AC servo motor 550W (Direct drive)

Power supply

Single-phase 110V/220V/230V,3-phase 220V/380V/400V,400VA

Specifications

ST-8430FX

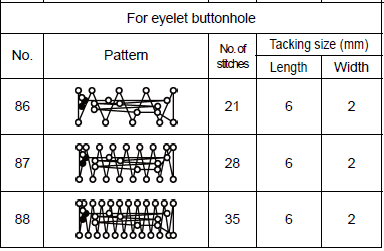

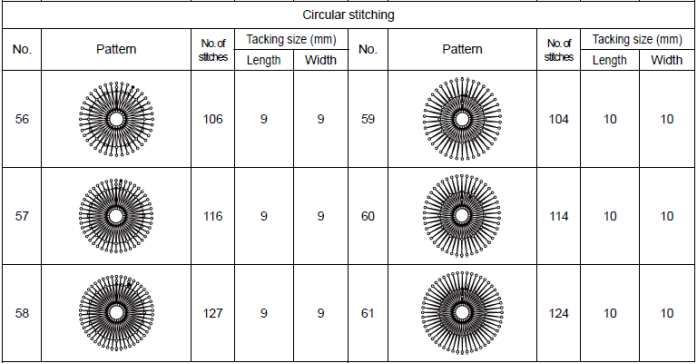

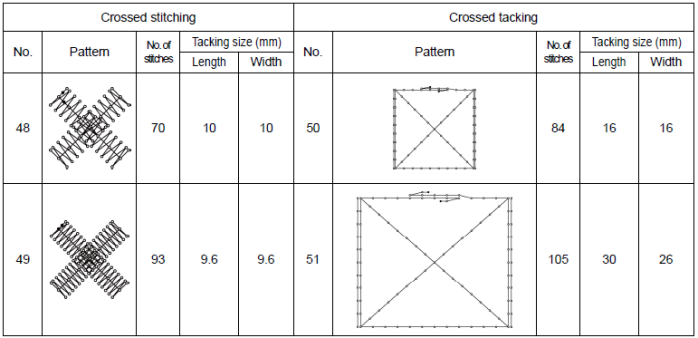

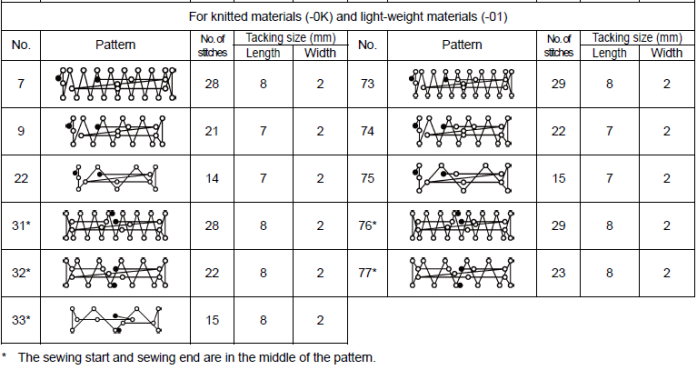

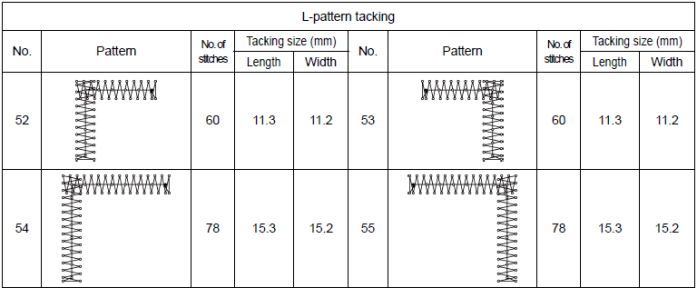

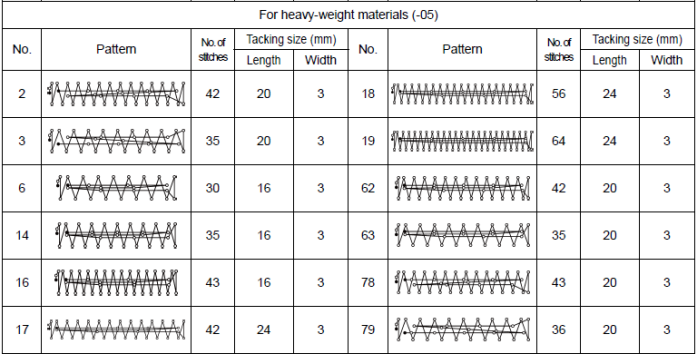

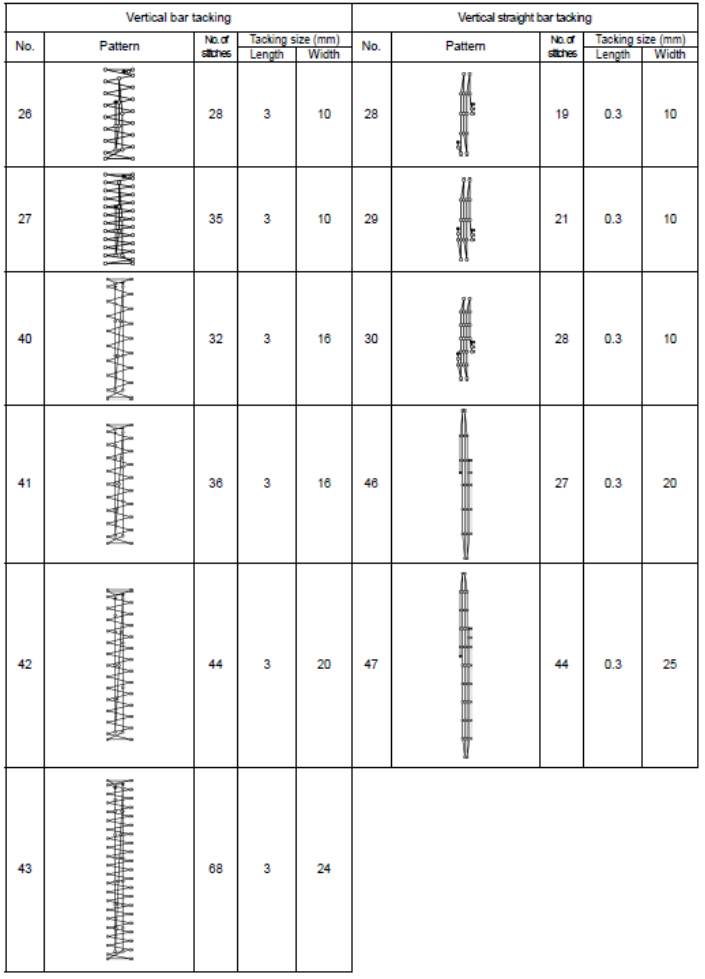

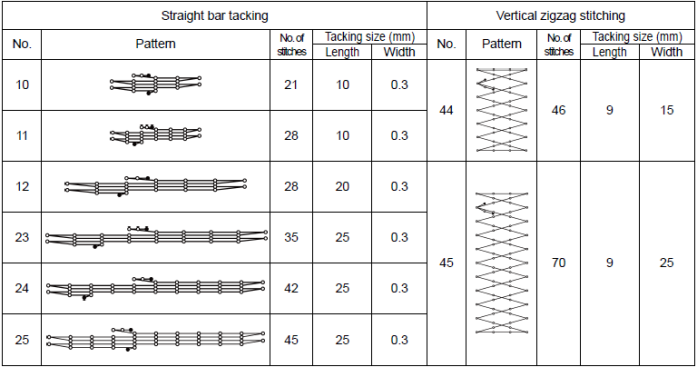

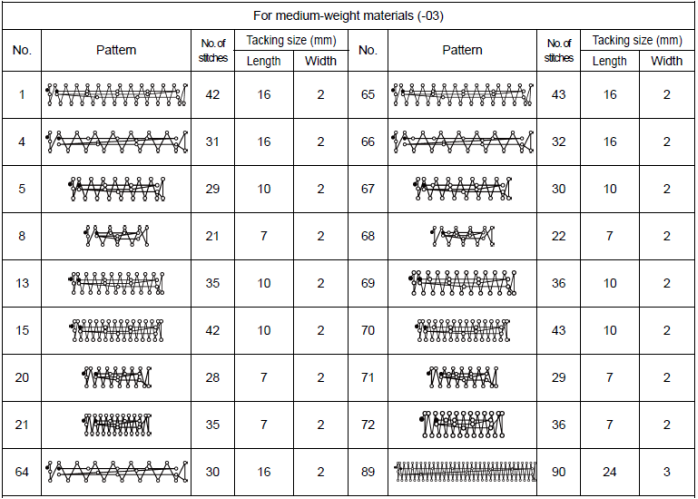

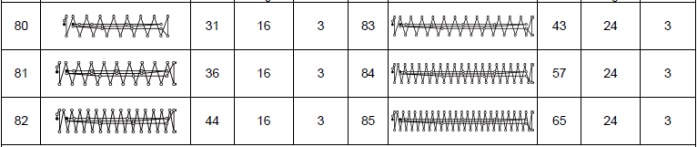

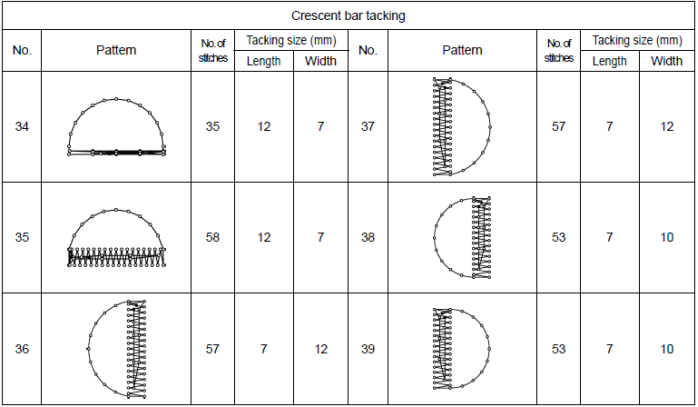

Sewing pattern list:



















Electronic Bar Tacker Sewing Machine









Delivery and Service:

· The machines have enough stock and can delivery within 7days.

· One year guarntee in mechanism parts except the quick-wear parts, three years guarntee in electronic parts.
