Computerized Attaching Shoulder Pads to Armholes and Trimming Edge

Computerized Attaching Shoulder Pads to Armholes and Trimming Edge

Class 697 the specialist for finishing armholes in jackets and coats.The 697 has been equipped with bottom feed,needle and alternating top feed as well as with fullness distribution control (optional at the top or bottom)and with a stitch loosening device. When attaching a shoulder pad, the stitch loosening finger (that may be engaged manually or automatically) prevents the pad from being compressed.

Model:ST-697-24155

Send Inquiry

PDF Download

Product Description

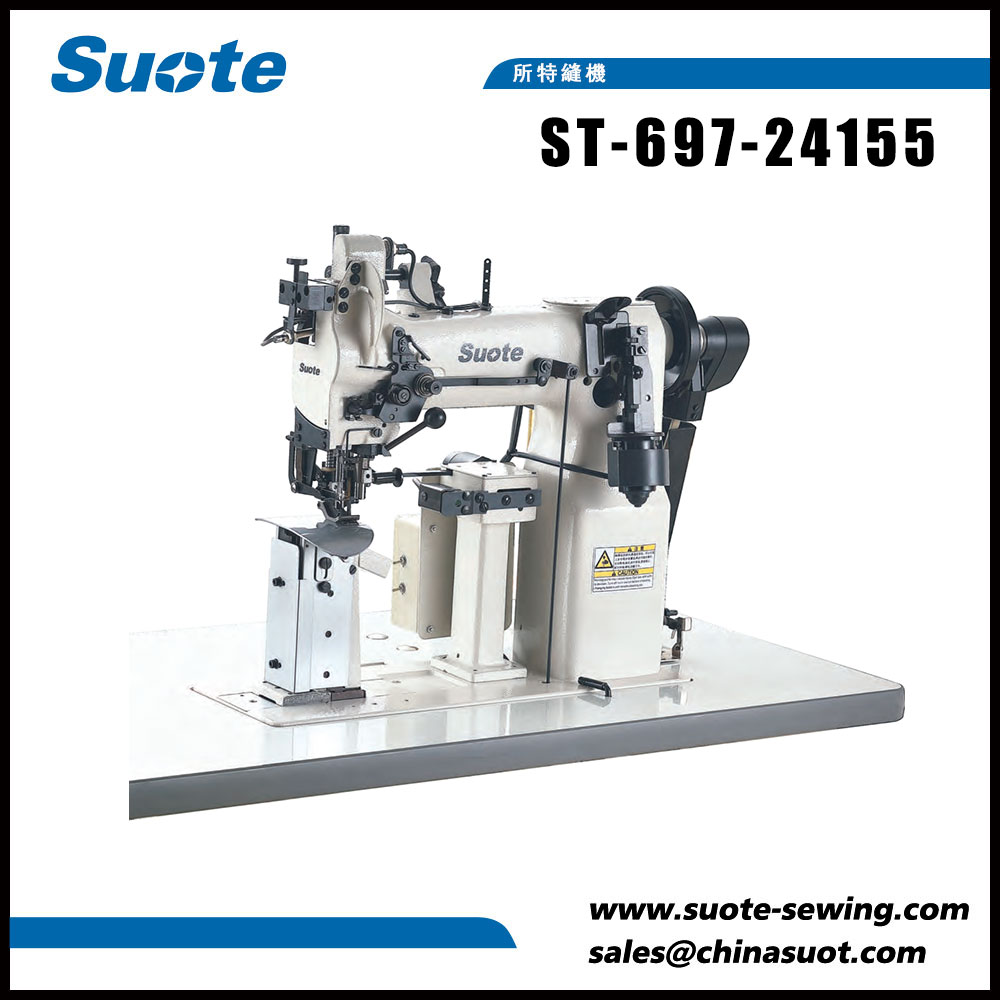

Computerized attaching shoulder pads to armholes and trimming edge  ST-697-24155



Computerized Attaching Shoulder Pads to Armholes and Trimming Edge

Class 697 the specialist for finishing armholes in jackets and coats.The 697 has been equipped with bottom feed,needle and alternating top feed as well as with fullness distribution control (optional at the top or bottom)and with a stitch loosening device. When attaching a shoulder pad, the stitch loosening finger (that may be engaged manually or automatically) prevents the pad from being compressed.


Introduction

·Postbed construction for easy handing of work pieces

·Fullness distribution by means of bottom feed, needle feed and alternating foot top feed.

·Integrated fullness control and stitch loosening device (manually or automatically engage able) for constantly high quality

·Edge trimmer (Class ST-697-24155) with various trimming margins available

·Robust and durable design

·Operations of class ST-697-24155: Attaching shoulder pads to armholes and trimming edges;attaching body lining to armholes and trimming edges


Feartures

Single needle

Lockstitch

Vertical hook,

small

foot lift

Underbed thread trimmer

Post bed

Typical Application

Coats/

Jackets/ Suits


Specifications


Stitches/min

Material

Knife stroke,standard

Knife stroke adjustable up to

Edge trimmer,trimming margin*


(mm)
U   O

(min-1)max.


(mm)

(mm) max.

(mm)
A      B



(mm)

 6,4        8,0       10,0

ST-697-15155

6,0  7,0

1,500

MS

4,0-9,0

18,0

14       18


ST-697-24155

6,0   7,0

1,500

MS

4,0-9,0

18,0

14       18

●         ●         ●

    U=Bottom feed         O=Top feed         MS=Medium weight to heavy weight material



    ●=Standard equipment              *=One trimming margin is supplied per unit









Normal voltage

Power consumption

Weight,
complete

Synthetic/
Core thread

Dimensions
(Length,Width,Height)


(V),(Hz)

(KVA)

(kg)


(mm)

System

Nm

(mm)
C       D

ST-697-15155

190-230V,50/60 Hz

1(max.)

100

65/2  80-120

1,060    500   1,700

190R

130

210       140

ST-697-24155

190-230V, 50/60 Hz

1(max.)

100

65/2  80-120

1,060    500   1,700

190R

130

210       140


Delivery and Service:

· The machines have enough stock and can delivery within 7days.

· One year guarntee in mechanism parts except the quick-wear parts, three years guarntee in electronic parts.
