Electronic Eyelet Button Holer Sewing Machine

Electronic Eyelet Button Holer Sewing Machine

Suote is a professional manufacturer of Electronic Eyelet Button Holer Sewing Machine. Our professional expertise in manufacturing Electronic Eyelet Button Holer Sewing Machine has been honed over the past 20+ years.Electronic eyelet button holer sewing machine ST-9820-01 · Enhanced productivity with the high max.sewing speed 2,500 sti/min · Fine stitches with high-precision stitch point · Large arm pocket allowing smooth material handling · Easy maintenance · Easy-to-use operation panel for everyone

Model:ST-9820-01

Send Inquiry    PDF DownLoad

Product Description

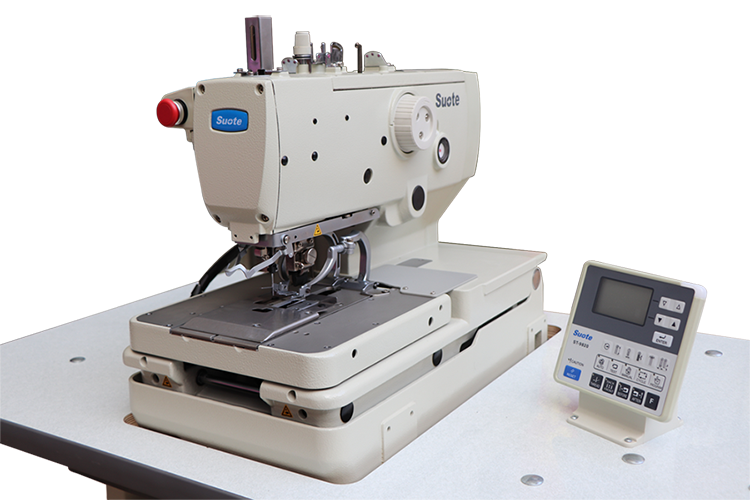

Electronic eyelet button holer sewing machine ST-9820-01


Electronic Eyelet Button Holer Sewing Machine



Introduction of this Electronic Eyelet Button Holer Sewing Machine



· Enhanced productivity with the high max.sewing speed 2,500 sti/min

· Fine stitches with high-precision stitch point

· Large arm pocket allowing smooth material handling

· Easy maintenance

· Easy-to-use operation panel for everyone



Sewing shapes of this Electronic Eyelet Button Holer Sewing Machine

Eyelet buttonhole

Straight buttonhole


Without bartack

Taper bartack

Straight bartack

Round bartack

Without bartack

Taper bartack

Straight bartack

Round bartack

Circular stitch


Feartures of this Electronic Eyelet Button Holer Sewing Machine







Double chain stitch

Button
holing

Thread
trimmer

Operational  Panel


Typical Application of this Electronic Eyelet Button Holer Sewing Machine





Jacket

Trousers

Jeans



Specifications of this Electronic Eyelet Button Holer Sewing Machine
:
ST-9820-01

Specifications

-00

-01

-02

L2230

L1826*1

Thread Trimmer

Upper thread trimmer

Long thread cut

Long thread cut

Short thread cut

Lower thread trimmer

None

Long thread cut

Short thread cut

Main applications

Ladies’ wear

Men’s wear, Casual wear

Jeans

Jeans, Trousers

Other applications

Men’s wear, Casual wear, Jeans, Trousers

Ladies’ wear, Jeans, Trousers



Features

Only the upper thread is cut by the thread trimmer. Buttonholes up to 50mm long can be sewn

All the threads are cut long by the thread trimmers. The long thread ends can be securely held in the subsequent process. It is suitable for cases that require accurate short end or manual trimming.

All the threads are cut short by the thread trimmers. This saves the trouble of manual trimming and reduces consumption of the thread.

Sewing shape

Sewing length

Eyelet buttonhole: 8-50mm

Straight buttonhole: 5-50mm

Eyelet buttonhole: 8-42mm

Straight buttonhole: 5-42mm

22-30 mm

L1422 (14-22mm)*3

L1826 (18-26mm)*3

L2634 (26-34mm)*3

L3442 (34-42mm)*3

18-26 mm

L1422 (14-22mm)*3

L1826 (18-26mm)*3

L2634 (26-34mm)*3

L3442 (34-42mm)*3

Length of work clamp (standard)

30 mm

30 mm

26 mm

Length of hammer (standard)

22 mm

24 mm

20 mm

Length of hammer (accessory)

30 mm

28 mm

24 mm

Sewing speed

1,000 - 2,500 sti/min

Stitch pitch

0.5-2.0 mm

Zigzag width

1.5 - 5.0 mm (Up to 4.0 mm in mechanical, up to 5.0 mm with zigzag width compensation)

Zigzag width (Factroy setting)

2.5mm

3.0mm

Taper bartack length

0-20mm

Height of work clamp

12 mm as standard (Available up to 16 mm)

Starting method

Foot switch (Treadle type, Two-pedal type), Hand switch (Two-lever type)

Feed mechanism

Intermittent feed by 3 pluse motors (X, Y,θ)

Needle*4

D0x558 Nm80 - Nm120 (SCHMETZ)

Needle (Factory setting)*5

DOx558 Nm100

DOx558 Nm90

DOx558 Nm110

Languages supported for operation panel

Japanese, English, Chinese, German, French, Spanish, Italian,

 Portuguese, Turkish, Indonesian, Vietnamese and Russian

Safty equipment

Emergency stop function and built-in automatic stopping device activated by safety circuit in case of trouble

Upper shaft motor

AC servo motor 550W

Air pressure

Main regulator: 0.5 Mpa, Hammer pressure regulator: 0.4 Mpa

Air consumption

43.2 l/min. (8 cycles/min.)

Weight

Machine head: Approx. 120kgs, Control box: 14.2 -16.2kgs (depending on the destination)

Power supply

Signle phase 100V/200V, 3-phase 200V/220V/380V/400V, 400VA

*1 Special specification for Chinese market

*2 When sewing the circular stitch by-02 specifications, lower threads won’t be cut

*3 Change of ranges L1422-L3422 is available by replaceing gauge parts.

*4 For Chinese market: DOx558 - NY2#12#16 (ORGAN)

*5 For Chinese market: -00:#16, -01:#14, -02:#18


Delivery and Service of this Electronic Eyelet Button Holer Sewing Machine:

· The machines have enough stock and can delivery within 7days.

· One year guarntee in mechanism parts except the quick-wear parts, three years guarntee in electronic parts.
