Electronic Direct Drive bartacking machine ST-8430D Introduction ·Over whelmingly superior productivity with the fast cycle time. ·High quality sewing faithfully following the sewing data. ·Realization of wide ranging sewing capabilities and low tension sewing ·Follow-up processing unnecessary after thread trimming. ·Prevents thread cast-off, bird's nests, and Stains on the thread at the beginning of the sewing operation. ·Clean sewing, powerful needle penetration force,adoption of compact flash cards. ·Low noise and low vibration, because of its low power consumption, it is economical. ·Sewing area 40*30mm

Model:ST-8430D

Send Inquiry

PDF Download

Product Description

Electronic Direct Drive bartacking machine ST-8430D



Electronic Direct Drive Bartacking Machine




Introduction

·Over whelmingly superior productivity with the fast cycle time.

·High quality sewing faithfully following the sewing data.

·Realization of wide ranging sewing capabilities and  low tension sewing

·Follow-up processing unnecessary after thread trimming.

·Prevents thread cast-off, bird's nests, and Stains on the thread at the beginning of the sewing operation.

·Clean sewing, powerful needle penetration force,adoption of compact flash cards.

·Low noise and low vibration, because of its low power consumption, it is economical.

·Sewing area 40*30mm


Feartures

Direct drive


Typical Application

Multi-use


Specifications

ST-8430D


ST-8430D

ST-8438D

Application

01

02

05

06

07



Medium material

Heavy material

Belt

loop

Elastic stitch

Knitted materials

Button Sewing

Stitch formation

Single needle lockstitch

Max.Sewing speed

3200 rpm

2700 rpm

Sewing area (X-Y)

Max.

40*30mm

Max.

40*40mm

Max.

40*30mm

Max.

6.4*6.4mm

Dimensions of buttons that can be sewn

–––

Outer diameter of button 8-30mm*1

Feed mechanism

Y-θ intermittent feed mechanism (pulse-motor driven mechanism)

Stitch length

0.05-12.7mm

Max.No.of stitches

210,000 stitches(including 200,000 stitches which can be added)

Work clamp lifter

Pulse motor drive system

Work clamp height

17 mm Max.

13 mm Max.

Rotary hook

Shuttle hook

Thread wiper drive

Standard equipment

Thread trimmer drive

Standard equipment

Data storage method

Flash memory (any sewing pattern can be added using CF card)*2

Number of user program

50

Number of cycle program

9

Mumber of stored data

89 sewing patterns are set already

53 sewing patterns are set already

(Up to 200 patterns can be added.

Total number of stitches of stored data which can be added is within 200,000)

Motor

AC servo motor 550w



*1 use the optional button clamp B (S03634-101) for diameters of 20mm or greater

*2 the recommended CF cards are commercially-available ones from San Disk.

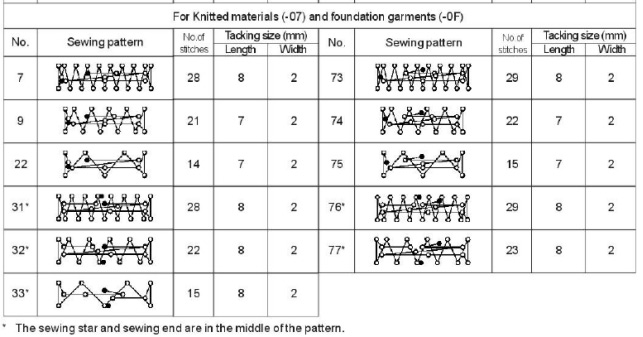

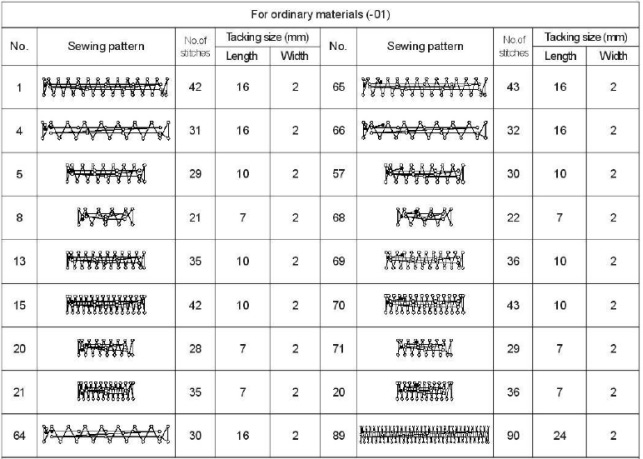

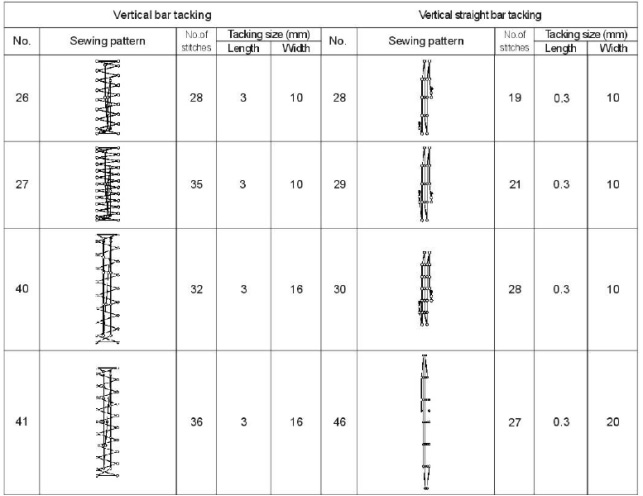

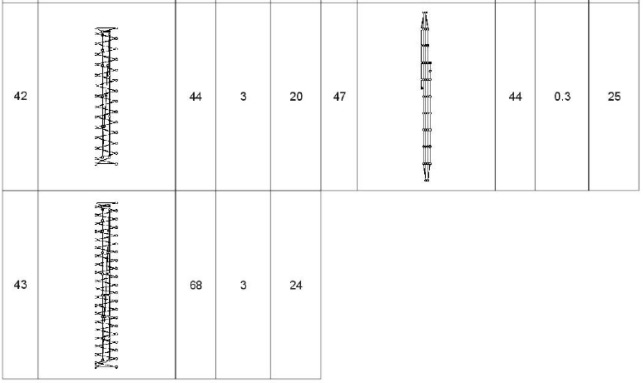

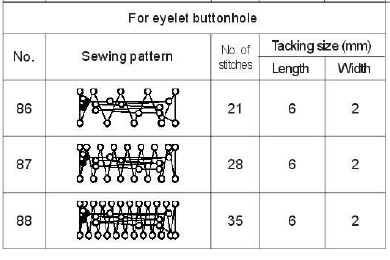

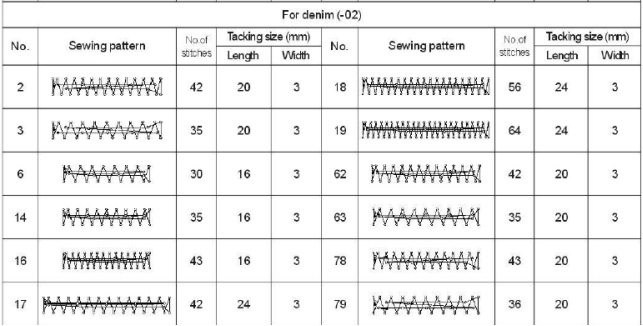

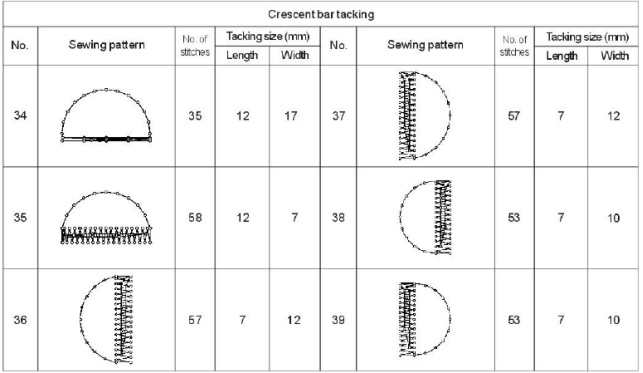

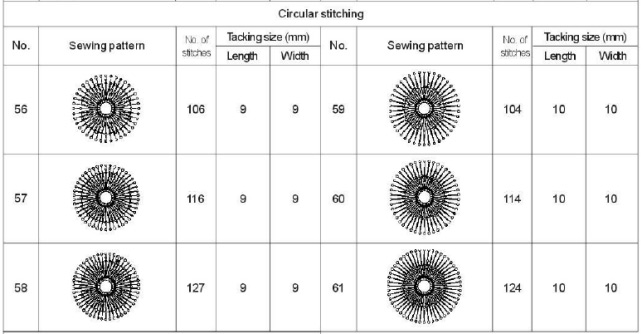

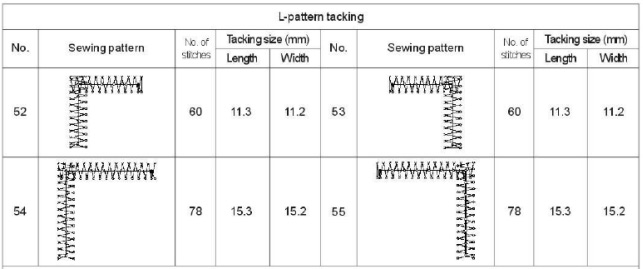

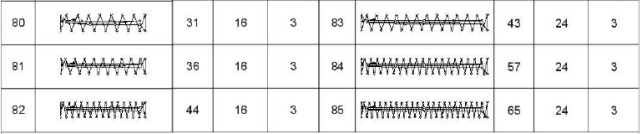

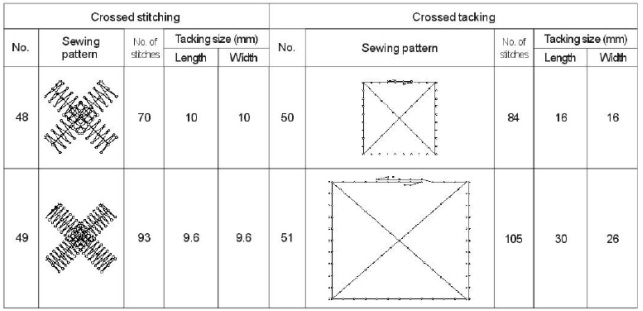

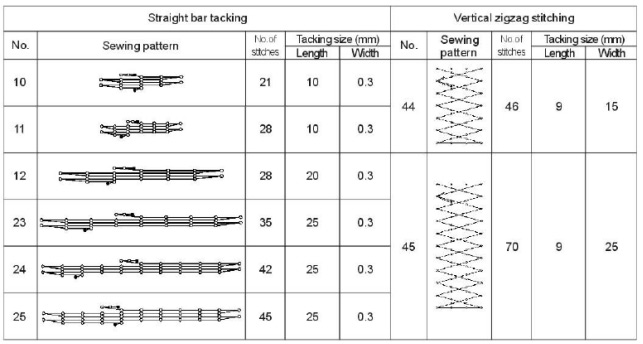

Sewing pattern list:



Bar Tacking Sewing Machine

Electronic Direct Drive Bartacking Machine

Electronic Direct Drive Bartacking Machine

Bar Tacking Sewing Machine

Electronic Direct Drive Bartacking Machine

Delivery and Service:

· The machines have enough stock and can delivery within 7days.

· One year guarntee in mechanism parts except the quick-wear parts, three years guarntee in electronic parts.
