Direct Drive Programmable Electronic Pattern Sewer with Cylinder Bed

Direct Drive Programmable Electronic Pattern Sewer with Cylinder Bed

Suote is a professional manufacturer of Direct Drive Programmable Electronic Pattern Sewer with Cylinder Bed. Our professional expertise in manufacturing Direct Drive Programmable Electronic Pattern Sewer with Cylinder Bed has been honed over the past 20+ years.China Direct Drive Programmable Electronic Pattern Sewer with Cylinder Bed brother type manufacturers and factory - Zhejiang suote sewing machine mechanism co.,ltd.Sincerely welcome friends from all walks of life come to visit, guide and negotiate business.

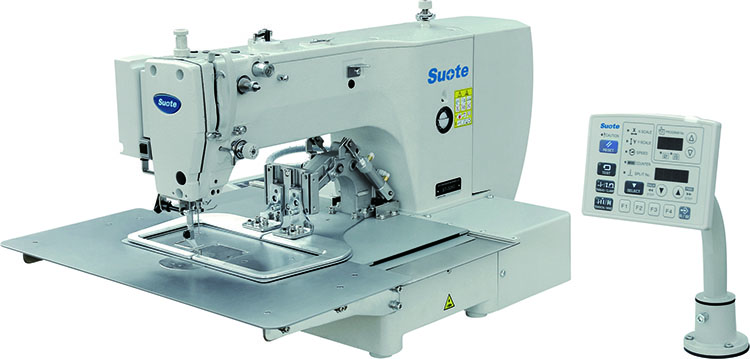

Model:ST-8311G (130*100MM)

Send Inquiry    PDF DownLoad

Product Description

Direct Drive Programmable Electronic Pattern Sewer with Cylinder Bed

ST-8311G (130*100MM)


Direct Drive Programmable Electronic Pattern Sewer with Cylinder Bed



Introduction of this Direct Drive Programmable Electronic Pattern Sewer with Cylinder Bed


·Sewing data is sewn faithfully and attractively.

·High maximum sewing speed

·Economical operation with low power consumption

·Work clamp lift amount can be adjusted easily from the operation panel

·Easy-to-use programmer(optional product)

·Sewing area: 130*100mm


Features of this Direct Drive Programmable Electronic Pattern Sewer with Cylinder Bed

Direct Drive


Typical Application of this Direct Drive Programmable Electronic Pattern Sewer with Cylinder Bed

Jeans

Bag

Sports shoes

Car articles


Specification of this Direct Drive Programmable Electronic Pattern Sewer with Cylinder Bed


ST-8311G

ST-8326G

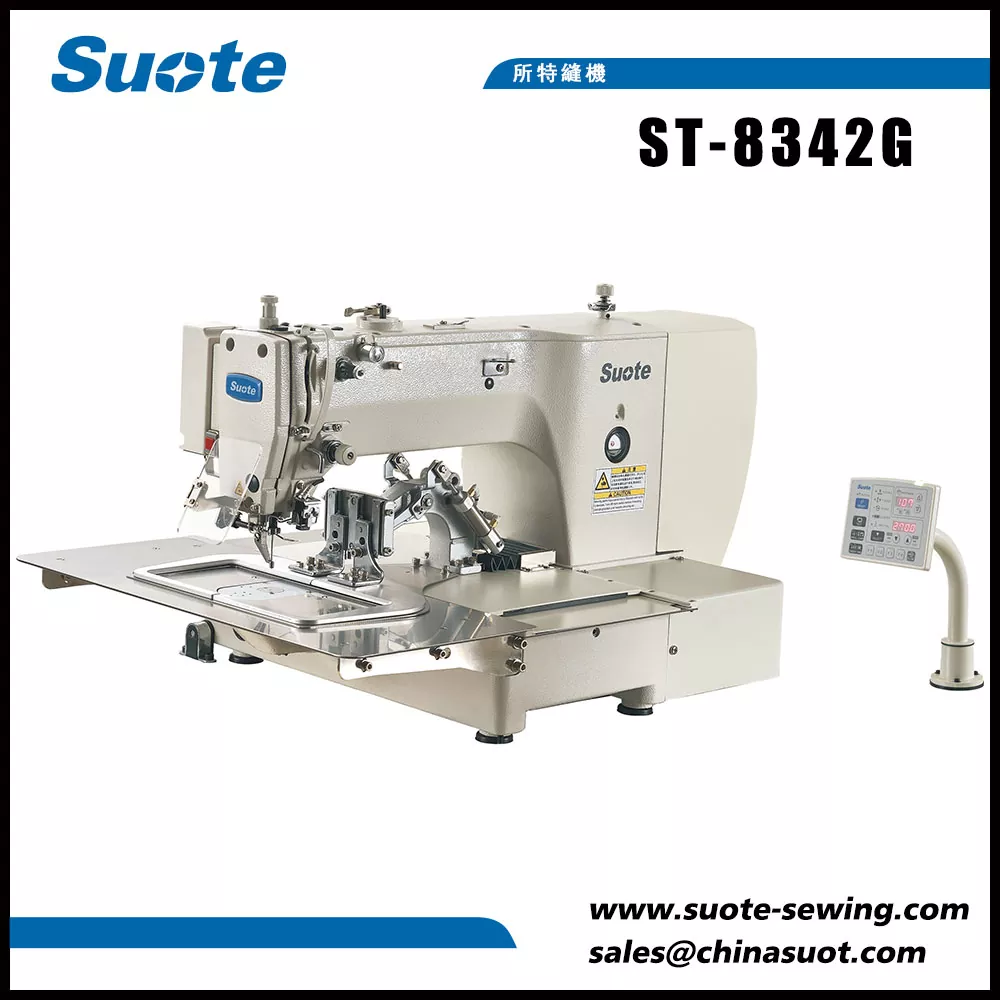

ST-8342G

Sewing machine

Lock stitch pattern tacking machines

Stitch form

Single needle lock stitch

Max.sewing speed

2,700 sti/min

Sewing area(X*Y)

Max.130*100mm

Max.200*100mm

Max.300*200mm

Feed mechanism

Intermittent feed  (pulse motor drive)

Stitch length

0.05 - 12.7mm

Max.number of stitches

20,000 stitches per pattern

Work clamp drive

Pulse motor drive/

Pneumatic drive

Pulse motor drive

Pulse motor drive

Work clamp lift amount

 -0□S : Max . 25mm

 - 0□A : Max . 30mm

Max.30mm

Max.30mm

2-step work clamp

  -0□S:Unit work clamp
-0□A:Separate work clamp

Separate work clamp

Unit work clamp

Height of stepping presser foot

22mm

19.5mm

22mm

Stepping presser foot stroke

2 - 4.5mm,4.5 - 10mm or 0 (Factory setting :3 mm)

Hook

Double-capacity shuttle hook (Standard capacity hook: Option)

Thread wiper

Standard equipment

Thread trimmer

Standardequipment

Data storage media

Flash memory (Sewing patterns can be added using CF card)

Motor

AC servo motor 550W

Weight

Machine head: 88 kg ,Operation panel: approx 0.6 kg, Control box:14.2-16.2kg

 (Depending on destination)

Power supply

Single phase 100V/220V,  3-phase 200V/220V/380V/400V 400VA

Air pressure/consumption

0.5 Mpa 1.7L / min


Option Device of this Direct Drive Programmable Electronic Pattern Sewer with Cylinder Bed:

Direct Drive Programmable Electronic Pattern Sewer with Cylinder Bed

Pattern Sewing Machine

Direct Drive Programmable Electronic Pattern Sewer with Cylinder Bed

Flip Flop for Label

Sliding Presser for Label

Patch Pocket

Pattern Sewing Machine

Pattern Sewing Machine

Direct Drive Programmable Electronic Pattern Sewer with Cylinder Bed

Custom-made

Custom-made

LCD Programmer


Delivery and Service of this Direct Drive Programmable Electronic Pattern Sewer with Cylinder Bed:

·The machines have enough stock and can delivery within 7days.

·One year guarntee in mechanism parts except the quick-wear parts, three years guarntee in electronic parts.
